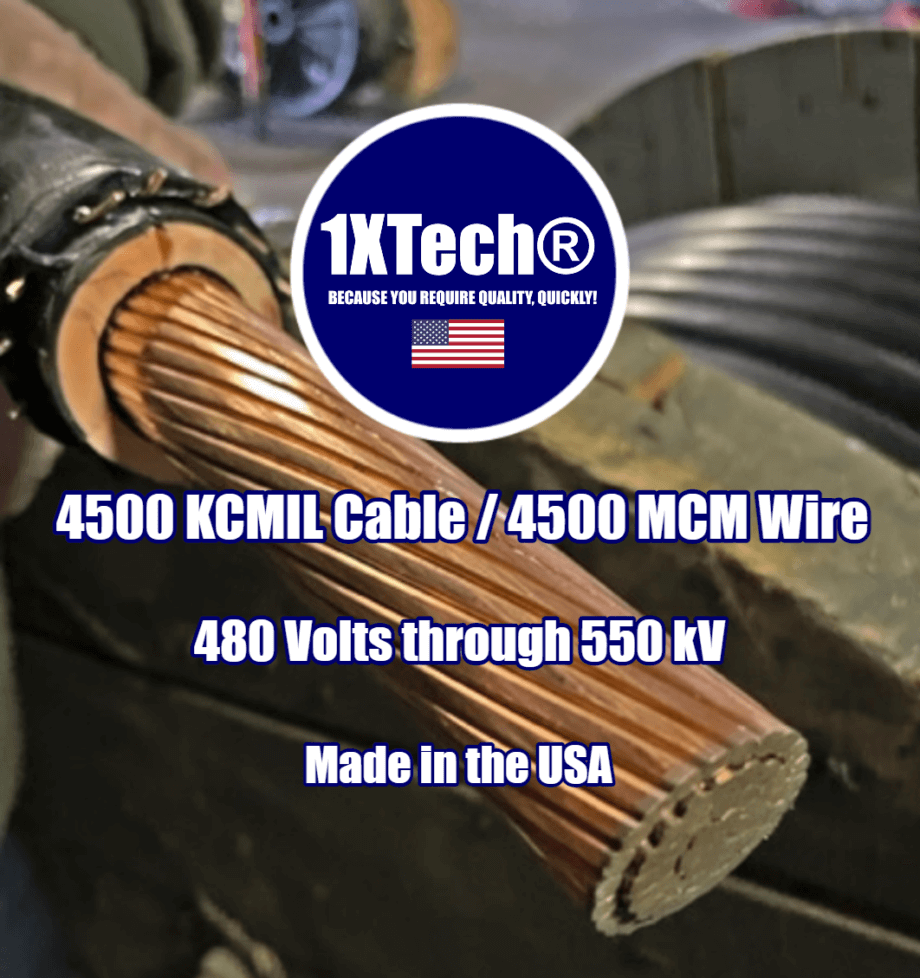

4500 MCM Cable Price – 4500 KCMIL Pricing.

It’s important to note that you’re able to get your 4500 MCM price, 4500 KCMIL Pricing to buy your copper and aluminum cable today. You won’t have to wait. We will help you right away. Furthermore, while 4500 MCM is typically a non-stock size, we may have the specific 4500 MCM, 4500 KCMIL Cable type you need on the floor, so please let us know what you are looking for. We typically stock and sell 4500 MCM and 4500 KCMIL cables in 600 Volt, 1KV, 2KV, 5KV, 8KV, 15KV, 25KV, 35KV, 69KV, 138KV, 238KV, 345kV, 400kV, 500kV, up to 550KV!

Do you need help planning an upcoming project, or need to order something now?

Let us know, we would be happy to help you!

Call 1-888-651-9990 for assistance or email us below.

My Quick 4500 MCM / 4500 KCMIL Price ✅

Include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond with your 4500 MCM / 4500 KCMIL Wire & Cable pricing, quickly.







If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.

The most common applications for 4500 MCM / 4500 KCMIL.

4500 MCM Cable is a very rare size. So rare, that it is usually only utilized for a few distinct applications.

• First, 4500 MCM or 4500 KCMIL Subsea or Submarine Cable Applications.
• Second, 4500 MCM or 4500 KCMIL High Voltage Utility Power Cable.
• Third, 4500 MCM or 4500 KCMIL Custom Cable Applications.
• Fourth, 4500 MCM or 4500 KCMIL Building Wire.








1.) 4500 MCM / 4500 KCMIL Subsea & Submarine Cable.

From Asia-Pacific to the Americas, and from Europe to the Middle East to Africa, 1X Technologies positions our capabilities at the heart of the development of power grids worldwide. Furthermore, helping major utilities in transmitting and distributing power to their customers through quality cables and wires. Additionally, unmatched in our manufacturing capabilities and with an unwavering commitment to R&D, we design, produce and install your submarine cables and systems, along with network components and value-added engineering services. Always aware of the need to minimize our impact on the planet, we’re constantly driving innovation in our industry. Specifically, we are always aiming to optimize our supply chain processes. Finally, we do everything we can to reduce your total cost of ownership and help you achieve sustainable, profitable growth when purchasing your 4500 MCM / 4500 KCMIL Submarine Cable.



From the National Oceanic and Atmospheric Administration on Submarine Cable:

It is a common misconception that most global communication is accomplished via satellite. In fact, over 95 percent of international data and voice transfers are currently routed through the many fiber optic cables that crisscross the world’s seafloors. See U.N. Env’t Programme World Conserv’n Monitoring Ctr., Submarine Cables, and the Oceans: Connecting the World, at 3, UNEP-WCMC Biodiversity Series No. 31 (2009) [hereinafter “UNEP Report”].  The earliest submarine cables carried telegraphic traffic.  The first successful trans-Atlantic submarine cable – a simple copper wire – became operational in 1866, delivering about 12 telegraphed words per minute.    As technology and laying techniques improved, the submarine network expanded greatly.  In September 1956, the era of submarine coaxial telephone communication began when two coaxial cables capable of carrying multiple voice channels came into service linking London and North America.  Finally, in 1988, the first transoceanic fiber-optic cable was installed linking the U.S., the U.K, and France.  Thereafter, the number of submarine fiber-option cables proliferated as they rapidly outperformed satellites in terms of the volume, speed, and economics of data and voice communication.  Submarine cables are also an important means of power transmission—particularly in light of the ongoing development of offshore alternative energy generation facilities, such as wind farms.



Submarine cables clearly play a critical role in global communications.

For the United States, they provide connectivity between the contiguous United States and Alaska, Hawaii, American Samoa, Guam, the Northern Marianas, Puerto Rico, and the U.S. Virgin Islands – as well as connectivity with the rest of the world.  They also support critical commercial, economic and national security endeavors. and they carry a majority of civilian, military and government offshore communications traffic.  The success of submarine cables owes much to treaties that have been negotiated since 1884.  Submarine cables are also subject to domestic regulations by most nations, including the United States which has a broad suite of domestic regulations applicable to cable-laying, maintenance, repair and removal operations.

2.) 4500 MCM / 4500 KCMIL High Voltage Utility Power Cable

1X Technologies provides high-voltage underground transmission solutions from end to end. We offer you the complete array of High-Voltage cable products, installation services, tools and equipment to meet your specific needs. And we’re with you every step of the way with responsive service, unmatched engineering support. and onsite project management—a commitment that has resulted in zero cable failures with over seven million feet of HV cable installed. When you need a high-voltage underground transmission, 1X Technologies is your best option.

1X Technologies LLC 4500 MCM / 4500 KCMIL HV Cable Features:

• XLPE HV Power Cables 69kV through 500kV with Copper and Aluminum conductors 4500 MCM / 4500 KCMIL. Copper or Aluminum is a matter of customer preference and required current carrying capacity.
• Shield wires, welded and corrugated sheaths, and composite laminate sheaths available in copper or aluminum cover all applications.
• XLPE cables through 500 kV.
• We offer nearly unlimited options such as integrated or external optical fiber for distributed temperature sensing, fire retardant cable jackets, and cables with the highest fault current ratings.
• Special executions include long lengths and pipe retrofit cables.
• Cables made to AEIC, ICEA, and IEC specifications.

3.) Custom 4500 MCM / 4500 KCMIL CUSTOM Applications

Simply put, whatever your specific need for a 4500 MCM Cable, we are ready to manufacture an excellent solution that will make you and your customers happy. Whether this custom cable is for Mining and Exploration or if it needed to complete a scientific venture, we are ready to show you just how excellent your choice was in choosing 1X Technologies to manufacture your 4500 MCM Cable.

Short Run Capability

Do you just need a short run of cable for your project? We specialize in manufacturing prototypes and short runs to help our customers when they need to finish a project or if they need to replace a damaged cable.

Rapid Manufacturing

Are you in an emergency situation where you need your cable delivered right away? Rapid manufacturing is our specialty. Call 1-888-651-9990 now.

4.) 4500 MCM / 4500 KCMIL Building Wire Applications

Perhaps the most common use for our 4500 MCM Wire is for building wire applications. 4500 MCM Is often used as a large Copper or Aluminum Feeder cable in commercial and industrial electrical construction.

The most Common Types of 4500 MCM, 4500 KCMIL building wire.

• 1- 4500 MCM Copper, 4500 KCMIL Copper THHN / THWN-2

• 2- 4500 MCM Copper, 4500 KCMIL Copper XHHW -2

• 3- 4500 MCM Copper, 4500 KCMIL Copper XLP— USE RHH-RHW -2

• 4- 4500 MCM Copper, 4500 KCMIL Copper MV-105  MV-90

• 5- 4500 MCM Copper, 4500 KCMIL Copper URD

• 6- 4500 MCM Aluminum, 4500 KCMIL Aluminum MV-105 MV-90

• 7- 4500 MCM Aluminum, 4500 KCMIL Aluminum URD

• 8- 4500 MCM Aluminum THHN, 4500 KCMIL Aluminum THHN

• 9- 4500 MCM Aluminum XHHW, 4500 KCMIL Aluminum XHHW

• 10- 4500 MCM Aluminum XLP— USE, 4500 KCMIL Aluminum XLP— USE

---





4500 MCM conversion to 4500 KCMIL (MCM to KCMIL)

First, KCMIL is an abbreviation for a Circular Mil. A circular mil is a unit of area, equal to the area of a circle with a diameter of one mil (one-thousandth of an inch). It’s important to note that MCM is a measurement abbreviation for one thousand circular mils. This is a historical measurement of electrical & electronic wire & cable gauge sizes that has been passed down through generations. Accordingly,

1 MCM = 1 kcmil = 0.5067 square milimeters. A mil is 1/1000 inch

Thus, 4500 MCM is equal to 4500 KCMIL. They are interchangeable when describing the gauge size, or AWG size of your electrical and electronic wire & cable. We manufacture cable using both 4500 KCMIL and 4500 MCM to describe the wire & cable sizes.



---

4500 MCM / 4500 KCMIL Wire and Cable Voltage

• 500 Volt / .5KV 4500 MCM Wire, 4500 KCMIL Cable.
• 600 Volt / .6KV 4500 MCM Wire, 4500 KCMIL Cable.
• 1,000 Volt/ 1KV 4500 MCM Wire, 4500 KCMIL Cable.
• 2,000 Volt / 2KV 4500 MCM Wire, 4500 KCMIL Cable.
• 2,400 Volt/ 2.4KV 4500 MCM Wire, 4500 KCMIL Cable.
• 5,000 Volt / 5KV 4500 MCM Wire, 4500 KCMIL Cable.
• 8,000 Volt / 8KV 4500 MCM Wire, 4500 KCMIL Cable.
• 15,000 Volt / 15KV 4500 MCM Wire, 4500 KCMIL Cable.
• 25,000 Volt / 25KV 4500 MCM Wire, 4500 KCMIL Cable.
• 35,000 Volt / 25KV 4500 MCM Wire, 4500 KCMIL Cable.
• 69,000 Volt / 69KV 4500 MCM Wire, 4500 KCMIL Cable.
• 138,000 Volt / 138KV 4500 MCM Wire, 4500 KCMIL Cable.
• 230,000 Volt / 230KV 4500 MCM Wire, 4500 KCMIL Cable.
• 400,000 Volt / 400KV 4500 MCM Wire, 4500 KCMIL Cable.
• 500,000 Volt / 500KV 4500 MCM Wire, 4500 KCMIL Cable.









4500 MCM / 4500 KCMIL Voltage Drop Calculations

DC / single phase calculation

The voltage drop V in volts (V) is equal to the wire current I in amps (A) times 2 times one-way wire length L in feet (ft) times the wire resistance per 1000 feet R in ohms (Ω/kft) divided by 1000:

V_{drop (V)} = I_{wire (A)} × R_wire(Ω)

= I_{wire (A)} × (2 × L_(ft) × R_wire(Ω/kft) / 1000_(ft/kft))

The voltage drop V in volts (V) is equal to the wire current I in amps (A) times 2 times one way wire length L in meters (m) times the wire resistance per 1000 meters R in ohms (Ω/km) divided by 1000:

V_{drop (V)} = I_{wire (A)} × R_wire(Ω)

= I_{wire (A)} × (2 × L_(m) × R_{wire (Ω/km)} / 1000_(m/km))

3 phase calculation

The line to line voltage drop V in volts (V) is equal to square root of 3 times the wire current I in amps (A) times one way wire length L in feet (ft) times the wire resistance per 1000 feet R in ohms (Ω/kft) divided by 1000:

V_{drop (V)} = √3 × I_{wire (A)} × R_{wire (Ω)}

= 1.732 × I_{wire (A)} × (L_(ft) × R_{wire (Ω/kft)} / 1000_(ft/kft))

The line to line voltage drop V in volts (V) is equal to square root of 3 times the wire current I in amps (A) times one way wire length L in meters (m) times the wire resistance per 1000 meters R in ohms (Ω/km) divided by 1000:

V_{drop (V)} = √3 × I_{wire (A)} × R_{wire (Ω)}

= 1.732 × I_{wire (A)} × (L_(m) × R_{wire (Ω/km)} / 1000_(m/km))

Wire diameter calculations

The n gauge wire diameter d_n in inches (in) is equal to 0.005in times 92 raised to the power of 36 minus gauge number n, divided by 39:

d_{n (in)} = 0.005 in × 92^(36-n)/39

The n gauge wire diameter d_n in millimeters (mm) is equal to 0.127mm times 92 raised to the power of 36 minus gauge number n, divided by 39:

d_{n (mm)} = 0.127 mm × 92^(36-n)/39

Wire cross-sectional area calculations

The n gauge wire’s cross-sectional area A_n in kilo-circular mils (kcmil) is equal to 1000 times the square wire diameter d in inches (in):

A_{n (kcmil)} = 1000×d_n² = 0.025 in² × 92^(36-n)/19.5

The n gauge wire’s cross-sectional area A_n in square inches (in²) is equal to pi divided by 4 times the square wire diameter d in inches (in):

A_{n (in}2₎ = (π/4)×d_n² = 0.000019635 in² × 92^(36-n)/19.5

The n gauge wire’s cross-sectional area A_n in square millimeters (mm²) is equal to pi divided by 4 times the square wire diameter d in millimeters (mm):

A_{n (mm}2₎ = (π/4)×d_n² = 0.012668 mm² × 92^(36-n)/19.5

Wire resistance calculations

The n gauge wire resistance R in ohms per kilofeet (Ω/kft) is equal to 0.3048×1000000000 times the wire’s resistivity ρ in ohm-meters (Ω·m) divided by 25.4² times the cross-sectional area A_n in square inches (in²):

R_{n (Ω/kft)} = 0.3048 × 10⁹ × ρ_(Ω·m) / (25.4² × A_{n (in}2₎)

The n gauge wire resistance R in ohms per kilometer (Ω/km) is equal to 1000000000 times the wire’s resistivity ρ in ohm-meters (Ω·m) divided by the cross-sectional area A_n in square millimeters (mm²):

R_{n (Ω/km)} = 10⁹ × ρ_(Ω·m) / A_{n (mm}2₎

You can find more information on calculating Voltage Drop at EC&M Magazine.
