Electrical Cable Manufacturing Capabilities


Key Features of our Electrical Cable Manufacturing Capabilities.

Key Feature Minimum Typical Maximum
Number of Conductors Single 2 – 105 3000+
Conductor Size 30AWG
(.05mm2)
(1-28) AWG
(33.6-.08mm2)
6000 MCM
6000 KCMIL
Conductor Insulation Thickness
(.010 = 10 Mils)
.005
(.13mm)
.010 – .032
(.25 – .81mm)
.125
(3.18mm)
Jacket/Sheath Insulation Thickness
(.010 = 10 Mils)
.005
(.13mm)
.032 – .150
(.81 – 3.81mm)
.250
(6.35mm)
Finished Cable Diameter
(.010 = 10 Mils)
.100
(2.54mm)
.250 – 1.500
(6.35 – 38.1mm)
6.00
(152.4mm)



WIRE & CABLE STRANDING CLASS USES

Concentric-lay Conductors

  • Class B: Power Cables.
  • Class C: Power Cables where more flexible stranding than Class B is desired.
  • Class D: Power Cables where extra flexible stranding is desired.

Rope-lay and Bunch-stranded Conductors

Class G and H shall have concentric-lay-stranded members and Class I, K, and M shall have bunched-stranded members.

  • Class G: All cables for portable use.
  • Class H: All cables where extreme flexibility is required, such as for use on take-up reels, etc.
  • Class I: Apparatus cable and motor leads.
  • Class K: Cords and cables composed of No. 30 AWG copper wires. Stationary service.
  • Class M: Cords and cables composed of No.34 AWG copper wires. Constant service.



1XTech “Create” Custom Cable Manufacturing YouTube Video (16 seconds)

High-Velocity Wire & Cable Manufacturing Capabilities. 1XTech “Create” Cable Manufacturing YouTube Video (16 seconds)




Typical Electrical Cable Manufacturing Time?  FAST.

“Because You Require Quality, Quickly! ®” is our slogan for a reason. We pride ourselves on being nimble. When your electrical cable delivery truly matters most you can count on 1X Technologies to produce your cable with the fastest turnaround time anywhere relying on the best supply chain in the industry to make it happen. As your chosen wire & cable supplier we will work hard to make sure you get your cable quickly, from the factory floor to your job site as fast as we can. The lead times below are estimates and are dependent upon our supply chain of materials manufacturers but this is a good estimate, as always there can be a give or take with estimates. For a detailed quote contact your 1XTech salesman.

  • Typical 600V electrical cable Production time:  2 to 4 Weeks ARO   (ARO = After Receipt of Order).
  • Typical 300V electrical or electronic cable Production time: 2 to 4 weeks ARO
  • 1KV – 2KV  typical electrical cable Production time: 2  to 4 weeks ARO
  • 5KV – 35KV typical electrical cable Production time: 7 to 8 weeks ARO
  • 46KV – 550KV typical electrical cable Production time: 10 to 12  weeks ARO

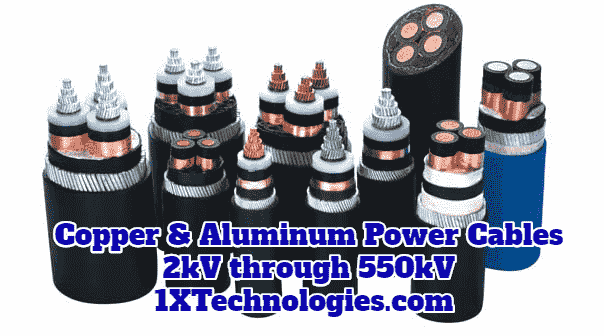

Electrical Cable Manufacturing Capabilities - Copper and Aluminum Power Cable  2kV, 5kV, 12kV, 15kV, 25kV, 35kV, 46kV, 69kV, 138kV, 220kV, 550kV

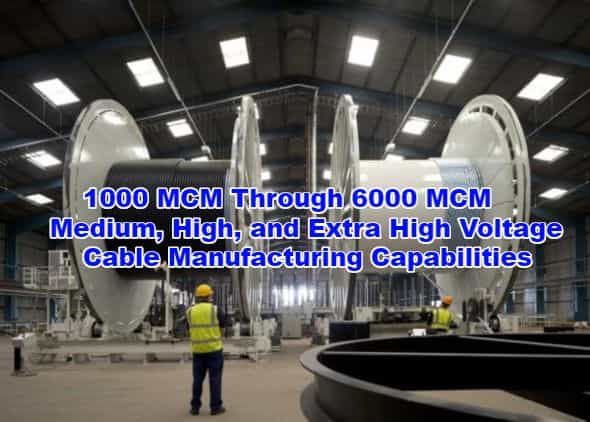

Electrical Cable Manufacturing Capabilities – Copper and Aluminum Power Cable 2kV, 5kV, 12kV, 15kV, 25kV, 35kV, 46kV, 69kV, 138kV, 220kV, 550kV




Expedited Electrical Cable Manufacturing Speed

While our normal electrical cable manufacturing speed is the fastest in the industry, we also offer you expedited electrical cable manufacturing services. We have manufactured and shipped 300V electrical cables within just 1 to 2 days, and 600 Volt cables within 5 to 7 days ARO from our first-in-class supply chain.

To expedite an order typically means the electrical cable manufacturing production team will need to expedite materials such as our copper rod, plastics, and chemicals used in the electrical cable manufacturing process.

They are expedited into our electrical cable factory either by hotshot delivery or by air freight. Then the electrical cable manufacturing crew usually works around the clock in order to produce your cable at lightning speed.



Expedited Electrical Cable Manufacturing Cost vs. Benefit

Because of all the work that goes into expediting our already super-fast electrical cable manufacturing process, it can be costly. However, while the price of the electrical cable product may give some sticker shock at first when having your specialty cable on-site in just days saves your project many thousands of dollars, or in Mike from Nasa’s casemillions of dollars. The added cost of the electrical cable turns out to be just a small exchange for the tremendous added value you receive.






Belden Cable Equivalent Manufacturers

1X Technologies Cable Company manufactures over 5000 top-of-the-line Belden Cable Equivalents, exclusively made in the USA. Your American-made, award-winning cables are cross-referenced directly from the Belden-Catalog to help you save time and money. You can buy alternatives to nearly every Belden part-number.





Electrical Cable Manufacturing Capabilities – Cable Reels and Wire Packaging.

1X Technologies Cable Company’s electrical cable packaging capabilities are vast. Ask us if you need something different than what you see below, we will check with our first-class network of vendors to see what we can make happen for you.

XL Cable Manufacturing Capabilities, Custom Cable Manufacturer, Copper Wire, Copper Cable, Submarine Cable, Medium Voltage Cable, High Voltage Cable, Extra High Voltage Cable Manufacturer Supplier
XL Cable Manufacturing Capabilities, Custom Cable Manufacturer, Copper Wire, Copper Cable, Submarine Cable, Medium Voltage Cable, High Voltage Cable, Extra High Voltage Cable Manufacturer Supplier



ELECTRICAL CABLE REEL TYPES

  1. Plywood Reels
  2. Wood Reels
  3. Steel Reels
  4. Polyfiber Reels
  5. Plastic Reels
  6. Reel in a Box
  7. Heat Treated Wood Reels
  8. Heat Treated Wood Pallets
  9. Cable Drums



ELECTRICAL CABLE REEL COVERINGS/PROTECTION

  1. Cardboard
  2. Clear Stretch Wrap
  3. Printed Plastic Wrap
  4. Wood Lagging
  5. Recycled Fiber Board



ELECTRICAL CABLE REEL IDENTIFICATION

  1. Descriptive Labels
  2. Barcode Labeling
  3. Tags
  4. Print or Marks on Reels
  5. Stickers



Unlimited Electrical Cable Configuration Manufacturing Capabilities.

1X Technologies Cable Company,  XXL Wire & Cable Manufacturing Capabilities
1X Technologies Cable Company, XXL Wire & Cable Manufacturing Capabilities
  • High-Temperature Cable
  • Extra Large AWG sizes, up to 6000 MCM / 6000 KCMIL
  • Multiconductor Cables
  • Multipair Cables
  • Microminiature Cables
  • Coaxial Cables
  • Micro coaxial Cables
  • Hybrid Cables
  • Composite Cables
  • Power Cables
  • Lead Wire
  • Flat, round braids
  • Retractable coil cords



Custom Cable Manufacturers, Made in the USA

1X Technologies Cable Company manufactures and supplies countless types of custom cable. Precisely, custom electrical cable, custom electronic cable, and countless types of wire and cable in every color you can imagine. We make the cable and wire that makes the world go round.




Electrical Cable Manufacturing Capabilities Specifications

  • Shielding
    Application: Overall and individual conductors/pairs
    Types: Foil, braid, spiral, Foil + braid
  • Flexing
    Flex types: Rolling, bending, torsional, continuous
    Flex cycles: Over 20 million
  • Ratings
    Temperature: -100 to + 450 C
    Electrical: 30, 150, 300, 600, 1000V through 550KV
  • NRTL Approvals
    UL, ETL, FM, CSA, CE, HAR, RoHS, USP Class VI, IEC
  • Mechanical/Environmental Manufacturing Capabilities – resistance to abrasion, oils, sunlight, chemicals, sterilization (autoclave, ETO, gamma, and more), and UV. Low outgassing.

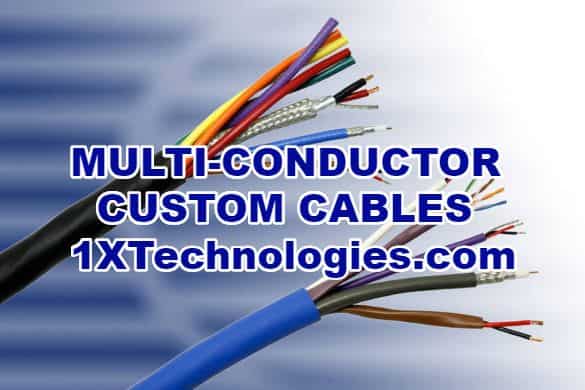

Multi Conductor Custom Cables, Manufacturing Capabilities, Custom Cable Manufacturer



Electrical Cable Manufacturing Capabilities, Cable Material Types


Electrical Wire & Cable Conductor Materials

  • Bare Copper (BC, SBC)
  • Topcoat (TCT)
  • Overcoat (OVCT)
  • Oxygen-Free High Cond. (OFHC)
  • Tinned Copper Weld (TCW)
  • Bare Copper Weld (BCW)Tinned Copper (TC, TPC)
  • IW Prebond® (PB, PBC)
  • Tinned Cadmium Bronze (TCB)
  • Nickel Cadmium Copper (NCC, NCa)
  • Zinc-Coated Steel (ZCW)
  • Silver Plated Copper (SPC)
  • Percon (High Strength Copper Alloy)


Electrical Wire & Cable Insulation and Jacket Compounds

  • Polyvinyl Chloride PVC
  • Semi-Rigid Polyvinyl Chloride SR-PVC
  • Polyethylene LDPE, HDPE, HMPE
  • Polypropylene PP
  • Hytrel® (Dupont) TPE
  • Thermoplastic Elastomer TPE
  • Thermoplastic Rubber TPRFlame Retardant PE FRPE
  • Foam Polyethylene FPE
  • Thermoplastic Vulcanizate
  • Santoprene® (ExxonMobile) TPR / TPV
  • Semi-Conductive SC-PE
  • Semi-Conductive SC-PVC
  • Cross-Linked Polyethylene XLPE
  • Fluorinated Ethylene Propylene FEP
  • FEP Teflon® (Dupont)
  • Ethylene Tetrafluoroethylene ETFE Tefzel® (Dupont)



Additional Specialized Electrical Wire Insulation’s

  • Irradiated Cross-Linked PVC
  • Irradiated Cross-Linked PE
  • Silicon Rubber
  • Poly Tetrafluoroethylene PTFETapes, Tape Shields, Binders, and WrapsMylar (Polyester)
  • Mylar Backed Aluminum Foil
  • Foil Free Edge Mylar Backed Aluminum Foil
  • Aluminum/Mylar/Aluminum
  • Foam Polypropylene
  • Spunbond Non-Woven Synthetics
  • Non-Woven Fleece Wraps
  • Copper Tape
  • Mylar Backed Copper
  • Tinned Copper TapePaper Separator Tapes
  • Tissue Separator Tapes
  • Teflon® Tapes
  • Water Blocking Tapes (Dry)
  • Nylon Binders
  • Cotton Tapes and Binders
  • Monel Mesh (Parker/Chomerics)
  • Stainless Steel TapeFiller MaterialsFibrillated Poly
  • Flame Retardant Fibrillated Poly
  • Solid Poly Rod
  • Flexible Solid Plastic Rod
  • NylonSynthetic Rope
  • Twisted Jute
  • Hot Melt Water Block
  • Fibrous Water Block (Dry)
  • Cotton
  • Kevlar® (Dupont)
  • Insulated Kevlar® (Dupont)
  • Waxed Kevlar® (Dupont)
  • Hot Melt Water Blocking Compound



Custom Electrical Cable Manufacturing Capabilities

How Custom Cable is made at 1X Technologies Cable Company.




Custom Electrical Cable, built fast.

1X Technologies excels at manufacturing custom cables. We can build composites, special conductor sizes, special insulation, with everything but the kitchen sink included with materials and supplies from a vast array of well-known vendors.

Wire & Cable Manufacturing Capabilities, Custom Cable, Composite Cable 1X Technologies
Wire & Cable Manufacturing Capabilities, Custom Cable, Composite Cable 1X Technologies



The 1X Technologies Custom Cable Advantage:

Advantages of working with the best custom cable manufacturers include being able to:

  1. Determine physical and electrical tolerances.
  2. Define the components that best fit your application like insulation, shield, jacket, etc.
  3. Combine various functions, such as power, signal, coax, shielded subassemblies, and optical fiber into one cable.
  4. Optimize the conductor count, stranding, size, and color-code.
  5. Save money by specifying the exact quantity & lengths required. We build short runs as low
  6. Build brand recognition by printing your company’s logo and information on the jacket.



Electrical Cable Manufacturing Capabilities – Typical ICEA Color Codes



K1 COLOR CODE

For Multi-Conductor Cables(Per ICEA Insulated Cable Engineers Association and NEC National Electric Code)

# Base Stripe1 Stripe2
1 BLK
2 WHT
3 RED
4 GRN
5 ORG
6 BLU
7 WHT BLK
8 RED BLK
9 GRN BLK
10 ORG BLK
11 BLU BLK
12 BLK WHT
13 RED WHT
14 GRN WHT
15 BLU WHT
16 BLK RED
17 WHT RED
18 ORG RED
19 BLU RED
20 RED GRN
21 ORG GRN
22 BLK WHT RED
23 WHT BLK RED
24 RED BLK WHT
25 GRN BLK WHT
26 ORG BLK WHT
27 BLU BLK WHT
28 BLK RED GRN
29 WHT RED GRN
30 RED BLK GRN
# Base Stripe1 Stripe2
31 GRN BLK ORG
32 ORG BLK GRN
33 BLU WHT ORG
34 BLK WHT ORG
35 WHT RED ORG
36 ORG WHT BLU
37 WHT RED BLU
38 BLK WHT GRN
39 WHT BLK GRN
40 RED WHT GRN
41 GRN WHT BLU
42 ORG RED GRN
43 BLU RED GRN
44 BLK WHT BLU
45 WHT BLK BLU
46 RED WHT BLU
47 GRN ORG RED
48 ORG RED BLU
49 BLU RED ORG
50 BLK ORG RED
51 WHT BLK ORG
52 RED ORG BLK
53 GRN RED BLU
54 ORG BLK BLU
55 BLU BLK ORG
56 BLK ORG GRN
57 WHT ORG GRN
58 RED ORG GRN
59 GRN BLK BLU
60 ORG GRN BLU



K2 COLOR CODE

For Multi-Conductor Cables(Per ICEA Insulated Cable Engineers Association and NEC National Electric Code)

# Base Stripe1
1 BLK
2 RED
3 BLU
4 ORG
5 YEL
6 BRN
7 RED BLK
8 BLU BLK
9 ORG BLK
10 YEL BLK
11 BRN BLK
12 BLK RED
# Base Stripe1
13 BLU RED
14 ORG RED
15 YEL RED
16 BRN RED
17 BLK BLU
18 RED BLU
19 ORG BLU
20 YEL BLU
21 BRN BLU
22 BLK ORG
23 RED ORG
24 BLU ORG
-# Base Stripe1
25 YEL ORG
26 BRN ORG
27 BLK YEL
28 RED YEL
29 BLU YEL
30 ORG YEL
31 BRN YEL
32 BLK BRN
33 RED BRN
34 BLU BRN
35 ORG BRN
36 YEL BRN



NRTL International Markings for your Manufactured Electrical Cable

You have many choices for your electrical cable testing agency. Because we sell wire & cable that is produced and tested by a lot of different companies’ and under a lot of different standards here is a list of most of them for your reference.

(UL) – Underwriters Laboratories.
(RU) Underwriters Laboratories – Appliance Wiring Material.
(cUL)– Underwriters Laboratories (Canada).
Accepted in all Seven Provinces.
(IEEE) – Institute of Electrical and Electronics Engineers.
(NEC) – National Electric Code.
(IEEE) – Institute of Electrical and Electronics Engineers Logo.
(CSA) – Canadian Standards Association.
(ETL) – ETL SEMKO.
(CEBEC) – Belgium Electrotechnical Committee.
(CEE) – International Commission for Rules for the Approval of Electrical Equipment.
(HAR) – Symbol for CENELEC.
(CENELEC) – European Committee for Electrotechnical Standardization.
(DEMKO) – Danish Electrical Testing Station (Denmark).
(ETSA) – Electricity Trust of South Australia.
(IEC) – International Electrotechnical Commission.
(IMQ) – Italian Institute of the Mark of Quality.
(K) – KEMA (Netherlands).
(NEMKO) – Norwegian Board for Testing and Approval of Electrical Equipment.
(OVE) – Austrian Association for Electrical Technology.
(SEMKO) – Swedish Institute for Testing and Approval of Electrical Equipment.
(NEC) – National Electric Code.
(VDE) – Association of German Electrical Engineers.
(SATIN) – Electrical Inspectorate (Finland).



Typical UL Standards for Wire & Cable Manufacturing

UL 4 Armored Cable
UL 44 Rubber Insulated Wires and Cables
UL 62 Flexible Cord and Fixture Wire
UL 83 Thermoplastic Insulated Wires and Cables
UL 133 Wires and Cables w/Varnished Cloth Insulation
UL 493 Thermoplastic Insulated Underground Feeder and Branch Circuit Cables
UL 719 Nonmetallic Sheathed Cables
UL 814 Glass Tube, Sign and Ignition Cables
UL 817 Cord Sets and Power Supply Cords
UL 854 Service Entrance Cables
UL 1063 Machine Tool Wires and Cables
UL 1072 Medium Voltage Power Cables
UL 1277 Electrical Power and Control Tray Cables with Optional Fiber Members
UL 1426 Electric Cable for Boats
UL 1569 Metal Clad Cables
UL 1581 Reference Standard for Electrical Wires, Cables, and Flexible Cords



Electrical Wire & Cable Testing Capabilities

1X Technologies Cable Company performs many extensive testing capabilities to ensure that your products meet or exceed the unique requirements for our customers’ applications. Specifically, from eye diagram requirements for special signal applications to cold bend flexibility requirements measured by utilizing a liquid nitrogen chamber. Furthermore, we will gladly work with you to establish methods for testing and reporting of results according to your specific requirements.  Most importantly, we assist you with your validation programs and first article testing.

As you can see above, we carry a variety of agency approvals from certifying bodies such as UL, CSA, ETL, CE, and VDE.

Please contact us for additional information or to discuss your specific requirements.

Vertical Flame Test - Manufacturing Capabilities
Vertical Flame Test – Wire & Cable Manufacturing Capabilities
