1XTech® SEOOW Portable Cord Thermoplastic Elastomer (TPE) Flexible Wire & Cable Specifications, Chart, Ampacity / Amps, Pricing/Cost per foot to buy

1XTech® sells quality SEOOW Portable Cord at competitive prices and offers fully customizable cable including custom colors. SEOOW multiconductor power cables are used in your 600-volt electrical applications that require flexibility and durability such as portable industrial machinery, production equipment, and indoor/outdoor temporary power.

1XTech® SEOOW Portable Cord is UL Listed at 600 volts and has a temperature range of –50ºC to 105ºC. Our TPE SEOOW Cable has many characteristics that make it an excellent choice for any of your heavy-duty jobs where regular SOOW cord will become damaged and battered and is oil, water, moisture, and sunlight resistant. Below you will have the opportunity to review SEOOW Cable Specs/Specifications including ampacity/amps, Sizes, O.D., Weights, using our engineering charts.

SEOOW Cable Meaning / Definition

The definition and meaning of S-E-O-O-W Cable (letters) denote particular properties of the cord:

S – for Service
E – for Thermoplastic Elastomer
O – for Oil-resistant insulation
O – for Oil-resistant Jacket
W – for Weather and Water resistance

My SEOOW Portable Cord Price ✅

Please fill out the secure form below and be sure to include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond quickly with your SEOOW Portable Cord Pricing/Cost per foot to buy your cable today, for a great price.

Name:

Email Address:

Confirm Email Address:

Phone Number:

Message:

Send me a copy:

If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.

1XTech® SEOOW Portable Cord Properties

SEOOW Cable Features:

Excellent resistance to oil, water, and moisture
Sunlight resistant
Good tensile strength, elongation, and aging characteristics
Highly flexible
UL Listed and CSA Certified for indoor and outdoor use

PRINT LEGEND EXAMPLE:

1X TECHNOLOGIES ENVIROTECH® 105 XX AWG (X.XX mm2) X/C SEOOW (UL) 600V -50C TO 105C — CSA STOOW (TPE) 600V -50C TO 105C FT2 WATER RESISTANT

Standards 18 AWG to 10 AWG:

UL Flexible Cord – UL Subject 62
CSA Flexible Cord – C22.2-49
MSHA Approved
EPA 40 CFR, Part 26, Subpart C, heavy metals per Table 1, TCLP method
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
Passes CSA FT2 Flame Test

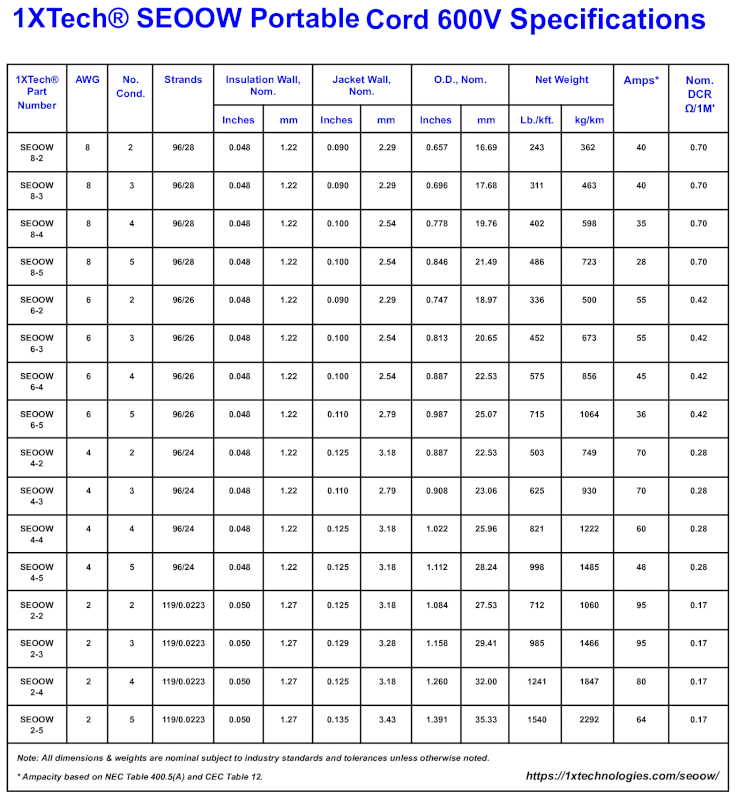

Standards 8 AWG to 2 AWG:

MSHA Approved
EPA 40 CFR, Part 26, Subpart C, heavy metals per Table 1, TCLP method

Construction:

Conductors: 18 through 2 AWG fully annealed stranded bare copper per ASTM B-174 Insulation: Thermoplastic Elastomer (TPE)

Color Code:

2 Conductors: Black, White
3 Conductors: Black, White, Green
4 Conductors: Black, White, Red, Green
5 Conductors: Black, White, Red, Green, Orange

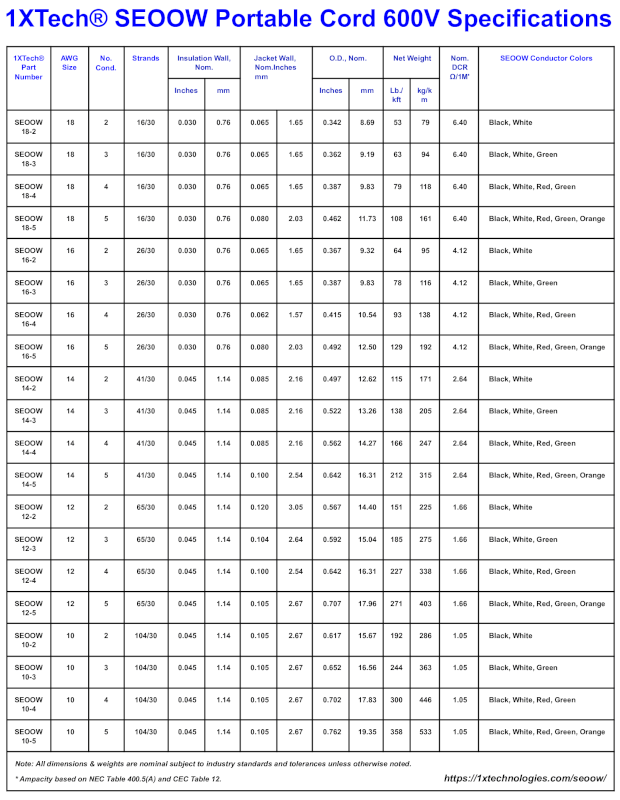

S-E-O-O-W Cable Sizes, Data, Specs, Pricing

18 AWG 2C SEOOW Portable Cord 600V Ul/CSA

Size: 18 AWG
Number of Conductors: 2
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 8.69 mm / 0.342 inches
Weight: 0.065 lbs per ft
18/2 Conductor SEOOW Current Ampacity / Amperage: 10 Amps
Color Code: 2 Conductors: Black, White
Pricing: My Price / Cost per foot to buy 18 AWG 2C SEOOW Cable

18 AWG 3C SEOOW Portable Cord 600V Ul/CSA

Size: 18 AWG
Number of Conductors: 3
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 9.19 mm / 0.362 inches
Weight: 0.08 lbs per ft
18/3 Conductor SEOOW Current Ampacity / Amperage: 10 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 18 AWG 3C SEOOW Cable

18 AWG 4C SEOOW Portable Cord 600V Ul/CSA

Size: 18 AWG
Number of Conductors: 4
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 9.83 mm / 0.387 inches
Weight: 0.09 lbs per ft
18/4 Conductor SEOOW Current Ampacity / Amperage: 7 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 18 AWG 4C SEOOW Cable

18 AWG 5C SEOOW Portable Cord 600V Ul/CSA

Size: 18 AWG
Number of Conductors: 5
Conductor Strand: 16/30
Insulation Thickness: 0.030 inches
Jacket Thickness: 0.080 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 0.465 inches
Weight: 0.102 lbs per ft
18/5 Conductor SEOOW Current Ampacity / Amperage: 7 Amps
Color Code: 5 Conductors: Black, White, Red, Green, Orange
Pricing: My Price / Cost per foot to buy 18 AWG 5C SEOOW Cable

16 AWG 2C SEOOW Portable Cord 600V Ul/CSA

Size: 16 AWG
Number of Conductors: 2
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 9.32 mm / 0.367 inches
Weight: 0.075 lbs per ft
16/2 Conductor SEOOW Current Ampacity / Amperage: 13 Amps
Color Code: 2 Conductors: Black, White
Pricing: My Price / Cost per foot to buy 16 AWG 2C SEOOW Cable

16 AWG 3C SEOOW Portable Cord 600V Ul/CSA

Size: 16 AWG
Number of Conductors: 3
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Outside Diameter: 9.83 mm / 0.387 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Weight: 0.095 lbs per ft
16/3 Conductor SEOOW Current Ampacity / Amperage: 13 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 16 AWG 3C SEOOW Cable

16 AWG 4C SEOOW Portable Cord 600V Ul/CSA

Size: 16 AWG
Number of Conductors: 4
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Jacket Thickness: 1.57 mm / 0.062 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 10.54 mm / 0.415 inches
Weight: 0.1 lbs per ft
16/4 Conductor SEOOW Current Ampacity / Amperage: 10 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 16 AWG 4C SEOOW Cable

14 AWG 2C SEOOW Portable Cord 600V Ul/CSA

Size: 14 AWG
Number of Conductors: 2
Conductor Strand: 41/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.16 mm / 0.085 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 12.62 mm / 0.487 inches
Weight: 0.13 lbs per ft
14/2 Conductor SEOOW Current Ampacity / Amperage: 18 Amps
Color Code: 2 Conductors: Black, White
Pricing: My Price / Cost per foot to buy 14 AWG 2C SEOOW Cable

14 AWG 3C SEOOW Portable Cord 600V Ul/CSA

Size: 14 AWG
Number of Conductors: 3
Conductor Strand: 41/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.16 mm / 0.085 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 13.26 mm / 0.522 inches
Weight: 0.15 lbs per ft
14/3 Conductor SEOOW Current Ampacity / Amperage: 18 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 14 AWG 3C SEOOW Cable

14/4 SEOOW Portable Cord 600V Ul/CSA

Size: 14 AWG
Number of Conductors: 4
Conductor Strand: 41/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.16 mm / 0.085 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 14.27 mm / 0.562 inches
Weight: 0.15 lbs per ft
14/4 Conductor SEOOW Current Ampacity / Amperage: 15 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 14 AWG 4C SEOOW Cable

14 AWG 5C SEOOW Portable Cord 600V Ul/CSA

Size: 14 AWG
Number of Conductors: 5
Conductor Strand: 41/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 16.31 mm / 0.642 inches
Weight: 0.22 lbs per ft
14/5 Conductor SEOOW Current Ampacity / Amperage: 12 Amps
Color Code: 5 Conductors: Black, White, Red, Green, Orange
Pricing: My Price / Cost per foot to buy 14 AWG 5C SEOOW Cable

12 AWG 2C SEOOW Portable Cord 600v Ul/CSA

Size: 12 AWG
Number of Conductors: 2
Conductor Strand: 65/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 14.4 mm / 0.587 inches
Weight: 0.165 lbs per ft
12/2 Conductor SEOOW Current Ampacity / Amperage: 25 Amps
Color Code: 2 Conductors: Black, White
Pricing: My Price / Cost per foot to buy 12 AWG 2C SEOOW Cable

12 AWG 3C SEOOW Portable Cord 600v Ul/CSA

Size: 12 AWG
Number of Conductors: 3
Conductor Strand: 65/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 15.04 mm / 0.592 inches
Weight: 0.21 lbs per ft
12/3 Conductor SEOOW Current Ampacity / Amperage: 25 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 12 AWG 3C SEOOW Cable

12 AWG 4C SEOOW Portable Cord 600v Ul/CSA

Size: 12 AWG
Number of Conductors: 4
Conductor Strand: 65/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 16.31 mm / 0.642 inches
Weight: 0.245 lbs per ft
12/4 Conductor SEOOW Current Ampacity / Amperage: 20 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 12 AWG 4C SEOOW Cable

12 AWG 5C SEOOW Portable Cord 600v Ul/CSA

Size: 12 AWG
Number of Conductors: 5
Conductor Strand: 65/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 17.95 mm / 0.707 inches
Weight: 0.29 lbs per ft
12/5 Conductor SEOOW Current Ampacity / Amperage: 16 Amps
Color Code: 5 Conductors: Black, White, Red, Green, Orange
Pricing: My Price / Cost per foot to buy 12 AWG 5C SEOOW Cable

10 AWG 2C SEOOW Portable Cord 600v Ul/CSA

Size: 10 AWG
Number of Conductors: 2
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 15.67 mm / 0.617 inches
Weight: 0.21 lbs per ft
10/2 Conductor SEOOW Current Ampacity / Amperage: 30 Amps
Color Code: 2 Conductors: Black, White
Pricing: My Price / Cost per foot to buy 10 AWG 2C SEOOW Cable

10 AWG 3C SEOOW Portable Cord 600v Ul/CSA

Size: 10 AWG
Number of Conductors: 3
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 16.56 mm / 0.652 inches
Weight: 0.26 lbs per ft
10/3 Conductor SEOOW Current Ampacity / Amperage: 30 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 10 AWG 3C SEOOW Cable

10 AWG 4C SEOOW Portable Cord 600V Ul/CSA

Size: 10 AWG
Number of Conductors: 4
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 17.83 mm / 0.702 inches
Weight: 0.32 lbs per ft
10/3 Conductor SEOOW Current Ampacity / Amperage: 25 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 10 AWG 4C SEOOW Cable

10 AWG 5C SEOOW Portable Cord 600v Ul/CSA

Size: 10 AWG
Number of Conductors: 5
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 19.35 mm / 0.762 inches
Weight: 0.37 lbs per ft
10/5 Conductor SEOOW Current Ampacity / Amperage: 20 Amps
Color Code: 5 Conductors: Black, White, Red, Green, Orange
Pricing: My Price / Cost per foot to buy 10 AWG 5C SEOOW Cable

8 AWG 3C SEOOW Portable Cord 600v

Size: 8 AWG
Number of Conductors: 3
Conductor Strand: 96/28
Insulation Thickness: 1.22 mm / 0.048 inches
Jacket Thickness: 2.29 mm / 0.090 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 17.68 mm / 0.696 inches
Weight: 0.32 lbs per ft
8/3 Conductor SEOOW Current Ampacity / Amperage: 40 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 8 AWG 3C SEOOW Cable

8 AWG 4C SEOOW Portable Cord 600v

Size: 8 AWG
Number of Conductors: 4
Conductor Strand: 96/28
Insulation Thickness: 1.22 mm / 0.048 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 19.76 mm / 0.776 inches
Weight: 0.4 lbs per ft
8/4 Conductor SEOOW Current Ampacity / Amperage: 35 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 8 AWG 4C SEOOW Cable

8 AWG 5C SEOOW Portable Cord 600v

Size: 8 AWG
Number of Conductors: 5
Conductor Strand: 96/28
Insulation Thickness: 1.17 mm / 0.046 inches
Jacket Wall Thickness: 2.41 mm / 0.095 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 21.49 mm / 0.846 inches
Weight: 0.491 lbs per ft
8/5 Conductor SEOOW Current Ampacity / Amperage: 28 Amps
Color Code: 4 Conductors: Black, White, Red, Green, Orange
Pricing: My Price / Cost per foot to buy 8 AWG 5C SEOOW Cable

6 AWG 3C SEOOW Portable Cord 600v

Size: 6 AWG
Number of Conductors: 3
Conductor Strand: 96/26
Insulation Thickness: 1.22 mm / 0.048 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 20.65 mm / 0.813 inches
Weight: 0.48 lbs per ft
6/3 Conductor SEOOW Current Ampacity / Amperage: 55 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 6 AWG 3C SEOOW Cable

6 AWG 4C SEOOW Portable Cord 600V Non-UL

Size: 6 AWG
Number of Conductors: 4
Conductor Strand: 96/26
Insulation Thickness: 1.22 mm / 0.048 inches
Jacket Thickness: 2.54 mm / 0.100 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 22.53 mm / 0.867 inches
Weight: 0.535 lbs per ft
6/4 Conductor SEOOW Current Ampacity / Amperage: 45 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 6 AWG 4C SEOOW Cable

4 AWG 4C SEOOW Portable Cord 600v

Size: 4 AWG
Number of Conductors: 4
Conductor Strand: 96/24
Insulation Thickness: 1.22 mm / 0.048 inches
Jacket Thickness: 3.18 mm / 0.125 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 25.96 mm / 1.022 inches
Weight: 0.775 lbs per ft
4/4 Conductor SEOOW Current Ampacity / Amperage: 60 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 4 AWG 4C SEOOW Cable

2 AWG 3C SEOOW Portable Cord 600v

Size: 2 AWG
Number of Conductors: 3
Conductor Strand: 119/0.0223
Insulation Thickness: 1.22 mm / 0.048 inches
Jacket Thickness: 3.18 mm / 0.125 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 32.00 mm / 1.280 inches
Weight: 1.35 lbs per ft
2/3 Conductor SEOOW Current Ampacity / Amperage: 80 Amps
Color Code: 3 Conductors: Black, White, Green
Pricing: My Price / Cost per foot to buy 2 AWG 3C SEOOW Cable

2 AWG 4C SEOOW Portable Cord 600v

Size: 2 AWG
Number of Conductors: 4
Conductor Strand: 119/0.0223
Insulation Thickness: 1.22 mm / 0.048 inches
Jacket Thickness: 3.18 mm / 0.125 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 32.00 mm / 1.280 inches
Weight: 1.35 lbs per ft
2/4 Conductor SEOOW Current Ampacity / Amperage: 80 Amps
Color Code: 4 Conductors: Black, White, Red, Green
Pricing: My Price / Cost per foot to buy 2 AWG 4C SEOOW Cable

2 AWG 5C SEOOW Portable Cord 600V Non-UL

Size: 2 AWG
Number of Conductors: 5
Conductor Strand: 119/0.0223
Insulation Thickness: 1.27 mm / 0.050 inches
Jacket Thickness: 3.43 mm / 0.135 inches
Standard Jacket Colors: Black, Yellow, or White
Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
Custom Striping / Printing Available: Yes
Outside Diameter: 35.33 mm / 1.391 inches
Weight per ft: 1.54 lbs
2/5 Conductor SEOOW Current Ampacity / Amperage: 64 Amps
Color Code: 5 Conductors: Black, White, Green, Red, Orange
Pricing: My Price / Cost per foot to buy 2 AWG 5C SEOOW Cable

Color Finder by Pantone (Find any Pantone color for your S-E-O-O-W Portable Cord)

https://www.pantone.com/color-finder

Above please use the color finder by Pantone, who we partner with to produce beautiful wire colors. Pantone has nearly unlimited color options for your wire and we can work with our friends at Pantone to design a custom color wire for your project. We have done this for companies such as Facebook, Disney, and Apple for their data center wire colors. Using the Pantone color wheel we can make just about whatever you need and even trademark it the color will be something you’ll be using for OEM or for your company branding.

We would love to help you generate your own custom-colored portable cord so let us know what you have in mind!
