SJEOOW Wire & Cable 300V Flexible Cord [Specs/Sizes/Amps/Price]

SJEOOW 300V Portable Cord Pricing, Price, Cost, Buy, Manufacturers, Specs, Amps, Sizes

1XTech® SJEOOW Portable Cord 300V Thermoplastic Elastomer (TPE) Flexible Wire & Cable Specifications, Sizes, Chart, Ampacity / Amps, Pricing/Cost per foot to buy

1XTech® sells quality SJEOOW Portable Cord at competitive prices and offers fully customizable cable including custom colors.  SJEOOW multiconductor power cables are used in your 300-volt electrical applications that require flexibility and durability such as portable industrial machinery, production equipment, and indoor/outdoor temporary power.

1XTech® SJEOOW Portable Cord is UL Listed at 300 volts and has a temperature range of –50ºC to 105ºC.  Our TPE SJEOOW Cable has many characteristics that make it an excellent choice for any of your heavy-duty jobs where regular SOOW cord will become damaged and battered and is oil, water, moisture, and sunlight resistant.

Below you will have the opportunity to review SJEOOW Cable Specs/Specifications including ampacity/amps, Sizes, O.D., Weights, using our engineering charts.

SJEOOW Cable Meaning / Definition

The definition and meaning of SJEOOW Cable (letters) denote particular properties of the cord:

  • S – for Service
  • Jfor Junior 300V
  • E – for Thermoplastic Elastomer
  • O – for Oil-resistant insulation
  • O – for Oil-resistant Jacket
  • W – for Weather and Water resistance



My SJEOOW Portable Cord Price

Please fill out the pricing request form below and be sure to include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond quickly with your SJEOOW Portable Cord Price/Cost per foot to buy your wire & cable today, for a great price.






If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.





SJEOOW Portable Cord Properties

SJEOOW Portable Cord is rated at 300 volts and has a temperature range of –50ºC to 105ºC. These characteristics make SOOW Portable Cord an excellent choice for mitigating outdoor factors that would otherwise alter the performance of wire or cable.

SJEOOW Cable Features:

Excellent resistance to oil, water, and moisture – Sunlight resistant – Good tensile strength, elongation, and aging characteristics – Highly flexible – UL Listed and CSA Certified for indoor and outdoor use

Standards:

  • UL Flexible Cord
  • UL Subject 62
  • CSA Flexible Cord
  • C22.2-49
  • MSHA Approved
  • RoHS Compliant



PRINT LEGEND EXAMPLE:

1X TECHNOLOGIES ENVIROTECH® 105 XX AWG (X.XX mm2) X/C SJEOOW (UL) 300V -50C TO 105C — CSA STOOW (TPE) 300V -50C TO 105C FT2 WATER RESISTANT

Construction:

Conductors: 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174 Insulation: Thermoplastic Elastomer (TPE)

Color Code:

2 Conductors: Black, White 3 Conductors: Black, White, Green 4 Conductors: Black, White, Red, Green

SJEOOW Portable Cord

SJEOOW Cable Sizes, Data, Specs, Pricing/Cost per foot to buy



18 AWG 2C SJEOOW Portable Cord 300V Ul/CSA

  • Size: 18 AWG
  • Number of Conductors: 2
  • Conductor Strand: 16/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 7.24 mm / 0.285 inches
  • Weight: 0.04 lbs per ft
  • 18/2C – Two Conductor SJEOOW Current Ampacity / Amperage: 10
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 18 AWG 2C SJEOOW-Cable






18 AWG 3C  SJEOOW Portable Cord 300V Ul/CSA

  • Size: 18 AWG
  • Number of Conductors: 3
  • Conductor Strand: 16/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 7.87 mm / 0.310 inches
  • Weight: 0.05 lbs per ft
  • 18/3C – Three Conductor SJEOOW Current Ampacity / Amperage: 10
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  •  Pricing:  My Price / Cost per foot to buy 18 AWG 3C SJEOOW-Cable



18 AWG 4C SJEOOW Portable Cord 300V Ul/CSA

  • Size: 18 AWG
  • Number of Conductors: 4
  • Conductor Strand: 16/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 8.38 mm / 0.330 inches
  • Weight: 0.06 lbs per ft
  • 18/4C – Four Conductor SJEOOW Current Ampacity / Amperage: 7
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 18 AWG 4C SJEOOW-Cable






16 AWG 2C SJEOOW Portable Cord 300V Ul/CSA

  • Size: 16 AWG
  • Number of Conductors: 2
  • Conductor Strand: 26/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 7.87 mm / 0.310 inches
  • Weight: 0.05 lbs per ft
  • 16/2C – Two Conductor SJEOOW Current Ampacity / Amperage: 13
  • Color Code:2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 16 AWG 2C SJEOOW-Cable






16 AWG 3C SJEOOW Portable Cord 300V Ul/CSA

  • Size: 16 AWG
  • Number of Conductors: 3
  • Conductor Strand: 26/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 8.38 mm / 0.330 inches
  • Weight: 0.065 lbs per ft
  • 16/3C – Three Conductor SJEOOW Current Ampacity / Amperage: 13
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 16 AWG 3C SJEOOW-Cable






16 AWG 4C SJEOOW Portable Cord 300V Ul/CSA

  • Size: 16 AWG
  • Number of Conductors: 4
  • Conductor Strand: 26/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 9.02 mm / 0.355 inches
  • Weight: 0.08 lbs per ft
  • 16/4C – Four Conductor SJEOOW Current Ampacity / Amperage: 10
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 16 AWG 4C SJEOOW-Cable






14 AWG 2C SJEOOW Portable Cord 300V Ul/CSA

  • Size: 14 AWG
  • Number of Conductors: 2
  • Conductor Strand: 41/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 8.54 mm / 0.340 inches
  • Weight: 0.08 lbs per ft
  • 14/2C – Two Conductor SJEOOW Current Ampacity / Amperage: 18
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 14 AWG 2C SJEOOW-Cable






14 AWG 3C  SJEOOW Portable Cord 300V Ul/CSA

  • Size: 14 AWG
  • Number of Conductors: 3
  • Conductor Strand: 41/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 9.27 mm / 0.365 inches
  • Weight: 0.095 lbs per ft
  • 14/3C – Three Conductor SJEOOW Current Ampacity / Amperage: 18
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  •  Pricing:  My Price / Cost per foot to buy 14 AWG 3C SJEOOW-Cable






14 AWG 4C SJEOOW Portable Cord 300V Ul/CSA

  • Size: 14 AWG
  • Number of Conductors: 4
  • Conductor Strand: 41/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 10.03 mm / 0.395 inches
  • Weight: 0.14 lbs per ft
  • 14/4C – Four Conductor SJEOOW Current Ampacity / Amperage: 15
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 14 AWG 4C SJEOOW-Cable






12 AWG 2C SJEOOW Portable Cord 300v Ul/CSA

  • Size: 12 AWG
  • Number of Conductors: 2
  • Conductor Strand: 65/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 10.41 mm / 0.410 inches
  • Weight: 0.095 lbs per ft
  • 12/2C – Two Conductor SJEOOW Current Ampacity / Amperage: 25
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 12 AWG 2C SJEOOW-Cable






12 AWG 3C SJEOOW Portable Cord 300v Ul/CSA

  • Size: 12 AWG
  • Number of Conductors: 3
  • Conductor Strand: 65/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 10.92 mm / 0.430 inches
  • Weight: 0.13 lbs per ft
  • 12/3C – Three Conductor SJEOOW Current Ampacity / Amperage: 25
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing:  My Price / Cost per foot to buy 12 AWG 3C SJEOOW-Cable






12 AWG 4C SJEOOW Portable Cord 300v Ul/CSA

  • Size: 12 AWG
  • Number of Conductors: 4
  • Conductor Strand: 65/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 11.94 mm / 0.470 inches
  • Weight: 0.16 lbs per ft
  • 12/4C – Four Conductor SJEOOW Current Ampacity / Amperage: 20
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing: My Price / Cost per foot to buy 12 AWG 4C SJEOOW-Cable



10 AWG 2C SJEOOW Portable Cord 300v Ul/CSA

  • Size: 10 AWG
  • Number of Conductors: 2
  • Conductor Strand: 104/30
  • Insulation Thickness: 1.14 mm / 0.045 inches
  • Outside Diameter: 13.84 mm / 0.545 inches
  • Weight: 0.16 lbs per ft
  • 10/2C – Two Conductor SJEOOW Current Ampacity / Amperage: 30
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing: My Price / Cost per foot to buy 10 AWG 2C SJEOOW-Cable






10 AWG 3C SJEOOW Portable Cord 300v Ul/CSA

  • Size: 10 AWG
  • Number of Conductors: 3
  • Conductor Strand: 104/30
  • Insulation Thickness: 1.14 mm / 0.045 inches
  • Outside Diameter: 14.81 mm / 0.575 inches
  • Weight: 0.21 lbs per ft
  • 10/3C – Three Conductor SJEOOW Current Ampacity / Amperage: 30
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing: My Price / Cost per foot to buy 10 AWG 3C SJEOOW-Cable






10/4 SJEOOW Portable Cord 300v Ul

  • Size: 10 AWG
  • Number of Conductors: 4
  • Conductor Strand: 104/30
  • Insulation Thickness: 1.14 mm / 0.045 inches
  • Outside Diameter: 16.00 mm / 0.630 inches
  • Weight: 0.27 lbs per ft
  • Current Amps: 25
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Striping / Printing Available:   Yes
  • Pricing: My Price / Cost per foot to buy 10 AWG 4C SJEOOW-Cable

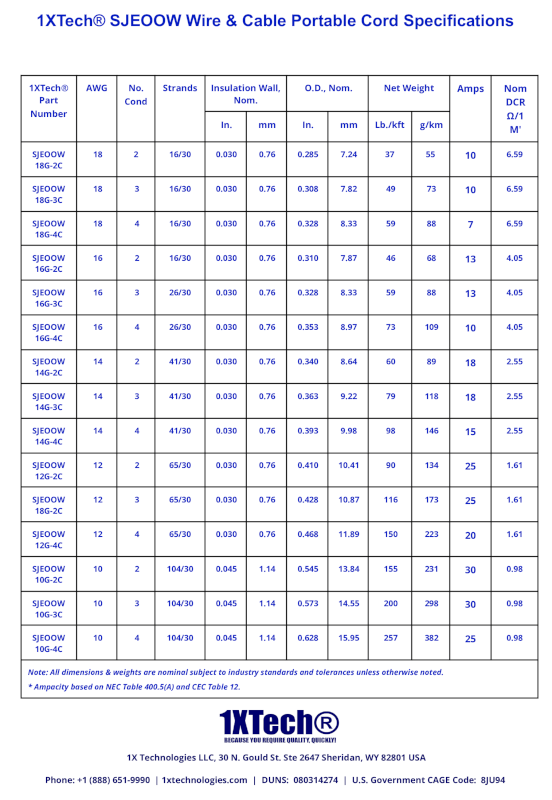

1XTech® SJEOOW Wire & Cable Portable Cord Specifications/Specs, Ampacity/Amps, Manufacturers Data Chart PDF

SJEOOW Portable Cord Specs Specifications price cost 1XTECH



































If you would like a PDF version of this SJEOOW specification sheet let us know, we will look forward to hearing from you.
