SJOOW 300V Portable Cord Pricing, Price, Cost, Buy, Manufacturers, Specs, Amps, Sizes

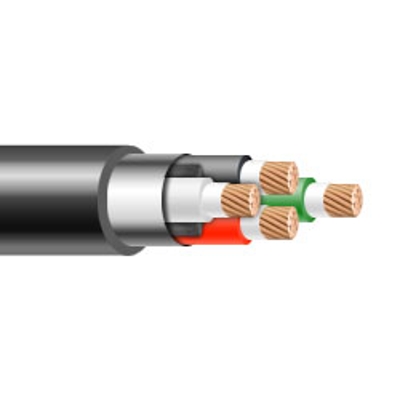

1XTech® SJOOW Portable Cord 300V Rubber Flexible Wire & Cable Manufacturers Specifications, Sizes, Chart, Ampacity / Amps, Pricing/Cost per foot to buy SJOW Service Cord

1XTech® sells quality SJOOW Portable Cord at competitive prices and offers fully customizable cable including custom colors.  SJOOW multiconductor power cables are used in your 300-volt electrical applications that require flexibility and durability such as portable industrial machinery, production equipment, and indoor/outdoor temporary power.

1XTech® SJOOW Portable Cord is UL Listed at 300 volts and has a temperature range of –40ºC to 90ºC.  Our Rubber SJOOW Cable has many characteristics that make it an excellent choice for any of your heavy-duty jobs where regular cables will become damaged and battered and is oil, water, moisture, and sunlight resistant. Below you will have the opportunity to review SJOOW Cable Specs/Specifications including ampacity/amps, Sizes, O.D., Weights, using our engineering charts.



My SJOOW Portable Cord Price ✅

Include your quantity required, wire & cable description, and delivery location in your message, and we’ll respond quickly with your SJOOW Portable Cord Price/Cost per foot to buy your wire & cable today.





If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.

SJOOW Cable Meaning / Definition

The definition and meaning of SJOOW Cable (letters) denote particular properties of the cord:

  • S – for Service
  • J – for Junior 300V
  • O – for Oil-resistant insulation
  • O – for Oil-resistant Jacket
  • W – for Weather and Water resistance

SJOOW Portable Cord Properties

Standards:

  • UL Flexible Cord
  • UL Subject 62
  • CSA Flexible Cord – C22.2-49
  • MSHA Approved
  • RoHS Compliant

Construction:

Conductors: 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174 Insulation: Premium-grade, color-coded 90ºC EPDM.

Color Code:

  • 2 Conductors: Black, White
  • 3 Conductors: Black, White, Green
  • 4 Conductors: Black, White, Red, Green

PRINT LEGEND EXAMPLE:

1X TECHNOLOGIES ENVIROTECH® 90 XX AWG (X.XX mm2) X/C SJOOW (UL) 300V -40C TO 90C — CSA  FT2 WATER RESISTANT

SJEOOW Portable Cord

300V Rubber Cord – SJOOW Cable Sizes, Data, Specs, Pricing/Cost per foot to buy

SJOOW Cable is typically sold from 18 AWG 2C up to 10 AWG 4C, but we can manufacture custom conductor counts for you very quickly. We produce SJ Cord with fully customized cable properties such as colors, shielding, armor, and a plethora of other options. Below you will review our stock cable sizes for SJ Service Cords and you can request a price on whatever size you need today.



18/2 SJOOW Portable Cord 300V UL/CSA

  • Size: 18 AWG
  • Number of Conductors: 2
  • Conductor Strand: 16/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 7.24 mm / 0.285 inches
  • Weight: 0.05 lbs per ft
  • 18/2C-SJOOW Current Ampacity / Amperage: 10 Amps
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 18/2 SJ cord, 18/2 rubber wire, 18 gauge 2 wire flexible cord, 18/2 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 18 AWG 2C SJOOW Cable



18/3 SJOOW Portable Cord 300V UL/CSA

  • Size: 18 AWG
  • Number of Conductors: 3
  • Conductor Strand: 16/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 7.75 mm / 0.305 inches
  • Weight: 0.065 lbs per ft
  • 18/3C-SJOOW Current Ampacity / Amperage: 10 Amps
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 18/3 SJ cord, 18/3 rubber wire, 18 gauge 3 wire flexible cord, 18/3 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 18 AWG 3C SJOOW Cable



18/4 SJOOW Portable Cord 300V UL/CSA

  • Size: 18 AWG
  • Number of Conductors: 4
  • Conductor Strand: 16/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 8.38 mm / 0.330 inches
  • Weight: 0.075 lbs per ft
  • 18/4C-SJOOW Current Ampacity / Amperage: 7 Amps
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 18/4 SJ cord, 18/4 rubber wire, 18 gauge 4 wire flexible cord, 18/4 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 18 AWG 4C SJOOW Cable



16/2 SJOOW Portable Cord 300V UL/CSA

  • Size: 16 AWG Number of
  • Conductors: 2
  • Conductor Strand: 26/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 7.87 mm / 0.310 inches
  • Weight: 0.06 lbs per ft
  • 16/2C-SJOOW Current Ampacity / Amperage: 13 Amps
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 16/2 SJ cord, 16/2 rubber wire, 16 gauge 2 wire flexible cord, 16/2 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 16 AWG 2C SJOOW Cable



16/3 SJOOW Portable Cord 300V UL/CSA

  • Size: 16 AWG
  • Number of Conductors: 3
  • Conductor Strand: 26/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 8.38 mm / 0.330 inches
  • Weight: 0.075 lbs per ft
  • 16/3C-SJOOW Current Ampacity / Amperage: 13 Amps
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available: Yes
  • Also Known As: 16/3 SJ cord, 16/3 rubber wire, 16 gauge 3 wire flexible cord, 16/3 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 16 AWG 3C SJOOW Cable



16/4 SJOOW Portable Cord 300V UL/CSA

  • Size: 16 AWG
  • Number of Conductors: 4
  • Conductor Strand: 26/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 9.27 mm / 0.365 inches
  • Weight: 0.095 lbs per ft
  • 16/4C-SJOOW Current Ampacity / Amperage: 10 Amps
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 16/4 SJ cord, 16/4 rubber wire, 16 gauge 4 wire flexible cord, 16/4 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 16 AWG 4C SJOOW Cable



14/2 SJOOW Portable Cord 300V UL/CSA

  • Size: 14 AWG
  • Number of Conductors: 2
  • Conductor Strand: 41/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 8.64 mm / 0.340 inches
  • Weight: 0.08 lbs per ft
  • 14/2C-SJOOW Current Ampacity / Amperage: 18 Amps
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 14/2 SJ cord, 14/2 rubber wire, 14 gauge 2 wire flexible cord, 14/2 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 14 AWG 2C SJOOW Cable



14/3 SJOOW Portable Cord 300V UL/CSA

  • Size: 14 AWG
  • Number of Conductors: 3
  • Conductor Strand: 41/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 9.40 mm / 0.370 inches
  • Weight: 0.105 lbs per ft
  • 14/3C-SJOOW Current Ampacity / Amperage: 18 Amps
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 14/3 SJ cord, 14/3 rubber wire, 14 gauge 3 wire flexible cord, 14/3 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 14 AWG 3C SJOOW Cable



14/4 SJOOW Portable Cord 300V UL/CSA

  • Size: 14 AWG
  • Number of Conductors: 4
  • Conductor Strand: 41/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 10.41 mm / 0.410 inches
  • Weight: 0.105 lbs per ft
  • 14/4C-SJOOW Current Ampacity / Amperage: 15 Amps
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 14/4 SJ cord, 14/4 rubber wire, 14 gauge 4 wire flexible cord, 14/4 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 14 AWG 4C SJOOW Cable



12/2 SJOOW Portable Cord 300V UL/CSA

  • Size: 12 AWG
  • Number of Conductors: 2
  • Conductor Strand: 65/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 10.41 mm / 0.410 inches
  • Weight: 0.115 lbs per ft
  • 12/2C-SJOOW Current Ampacity / Amperage: 25 Amps
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 12/2 SJ cord, 12/2 rubber wire, 12 gauge 2 wire flexible cord, 12/2 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 12 AWG 2C SJOOW Cable



12/3 SJOOW Portable Cord 300V UL/CSA

  • Size: 12 AWG
  • Number of Conductors: 3
  • Conductor Strand: 65/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 10.92 mm / 0.430 inches
  • Weight: 0.15 lbs per ft
  • 12/3C-SJOOW Current Ampacity / Amperage: 25 Amps
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 12/3 SJ cord, 12/3 rubber wire, 12 gauge 3 wire flexible cord, 12/3 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 12 AWG 3C SJOOW Cable



12/4 SJOOW Portable Cord 300V UL/CSA

  • Size: 12 AWG
  • Number of Conductors: 4
  • Conductor Strand: 65/30
  • Insulation Thickness: 0.76 mm / 0.030 inches
  • Outside Diameter: 12.07 mm / 0.475 inches
  • Weight: 0.18 lbs per ft
  • 12/4C-SJOOW Current Ampacity / Amperage: 20 Amps
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 12/4 SJ cord, 12/4 rubber wire, 12 gauge 4 wire flexible cord, 12/4 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 12 AWG 4C SJOOW Cable



10/2 SJOOW Portable Cord 300V UL/CSA

  • Size: 10 AWG
  • Number of Conductors: 2
  • Conductor Strand: 104/30
  • Insulation Thickness: 1.14 mm / 0.045 inches
  • Outside Diameter: 14.22 mm / 0.560 inches
  • Weight: 0.175 lbs per ft
  • 10/2C-SJOOW Current Ampacity / Amperage: 30 Amps
  • Color Code: 2 Conductors: Black, White
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 10/2 SJ cord, 10/2 rubber wire, 10 gauge 2 wire flexible cord, 10/2 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 10 AWG 2C SJOOW Cable



10/3 SJOOW Portable Cord 300V UL/CSA

  • Size: 10 AWG
  • Number of Conductors: 3
  • Conductor Strand: 104/30
  • Insulation Thickness: 1.14 mm / 0.045 inches
  • Outside Diameter: 14.73 mm / 0.580 inches
  • Weight: 0.23 lbs per ft
  • 10/3C-SJOOW Current Ampacity / Amperage: 30 Amps
  • Color Code: 3 Conductors: Black, White, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available:   Yes
  • Also Known As: 10/3 SJ cord, 10/3 rubber wire, 10 gauge 3 wire flexible cord, 10/3 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 10 AWG 3C SJOOW Cable



10/4 SJOOW Portable Cord 300V UL/CSA

  • Size: 10 AWG
  • Number of Conductors: 4
  • Conductor Strand: 104/30
  • Insulation Thickness: 1.14 mm / 0.045 inches
  • Outside Diameter: 16.64 mm / 0.655 inches
  • Weight: 0.305 lbs per ft
  • 10/4C-SJOOW Current Ampacity / Amperage: 25 Amps
  • Color Code: 4 Conductors: Black, White, Red, Green
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available: Yes
  • Also Known As: 10/4 SJ cord, 10/4 rubber wire, 10 gauge 4 wire flexible cord, 10/4 oil-resistant outdoor cable
  • Pricing:  My Price / Cost per foot to buy 10 AWG 4C SJOOW Cable



1XTech® SJOOW Wire & Cable Portable Cord Specifications/Specs, Ampacity/Amps, Manufacturers Data Chart PDF

Coming soon! Please email to request SJOOW PDF Specification sheet







About 1X Technologies Cable Company

1X Technologies, a first-class women-owned United States company, is a manufacturer & distributor of electrical, communications, and data networking wire and cable products and provider of related supply chain management and logistics services.

1XTECH®, through its network of hundreds of North American distributors and their facilities,  engineers, produces, stocks, and sells thousands of wire & cable-related products, helping its customers power, network, and secure their facilities with speed, intelligence, and efficiency, doing business by the company’s famous slogan “Because You Require Quality, Quickly!®”.

The company’s products are used in the most demanding applications and trusted by the likes of the United States Army Corps of Engineers, the United States Navy, NASA, and some of the largest, most well-known companies in the world. For more information call 1-888-651-9990.

Our Mission:

“Because You Require Quality, Quickly!®”

“It is the Mission of 1X Technologies LLC to provide electrical professionals with advanced Wire & Cable related products and knowledge that completely fulfills their requirements. We offer value through speed, ingenuity, and the ability to provide unique solutions that others can’t. Our friendly, knowledgeable, and professional staff will truly go the extra mile to help inspire, educate, and problem-solve for our customers. We’re Here Because You Require Quality, Quickly ®

Our Vision:

We’ll do what others won’t. We’ll provide you with value others can’t.

Our vision is to be the ultimate specialty wire and cable company in the world. We’ll relentlessly focus on finding new and better avenues to offer you unprecedented value.

Our purpose is to innovate, create, and design advanced cable solutions that further technologies throughout the world. Additionally, we are working to build more than a wire & cable dynasty. Specifically, we are in the business of giving back to the communities we all work and live in.

By focusing on our unprecedented abilities to offer you value in specialty wire & cable, we can use our mutual success as a machine for manufacturing good will for our stakeholders through charity and giving back to our community.
