What is THHN? 1XTECH® Copper THHN / THWN-2 is one of the most popular types of wire & cable used in the United States. It is chosen primarily due to the low cost of the cheap PVC wire. When compared to other building wire types, THHN almost seems like it’s on clearance sale.

Our THHN is also dual rated as THWN, carrying a dual rating and offering you a better product.

1X Technologies offers you all the standard THHN sizes as well as custom larger sized KCMIL and MCM THHN in bigger constructions than anywhere else.

We can also do bundling and factory install THHN in conduit or interlocking armor for you. THHN is a great wire, we would love to help you with your order today!

What does THHN stand for?

The meaning of the different letters in THHN wire denote particular properties of the cable:

• T -Thermoplastic
• HH – for High Heat-Resistant,
• N – Nylon Coated jacket.

What does THWN stand for?

The meaning of the different letters in THWN wire denote particular properties of the cable:

• T  – Thermoplastic
• H – Heat-Resistant,
• W – Water-Resistant
• N – Nylon Coated jacket.

My THHN Wire & Cable Price ✅

THHN/THWN-2 Copper Wire Specifications, Applications, and Uses

Application:

Type THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code2. When used as Type THHN, the conductor is suitable for use in dry locations at temperatures not to exceed 90°C When used as Type THWN-2, the conductor is suitable for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant. When used as Type MTW, the conductor is suitable for use in wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79). Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material Voltage for all applications is 600 volts.

THHN Wire Primary Uses

1X Technologies THHN copper conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THHN copper conductors are designed to be installed in two methods, depending on the type, with or without the application of a pulling lubricant. These conductors have multiple ratings. Depending upon the product application allowable temperatures are as follows:

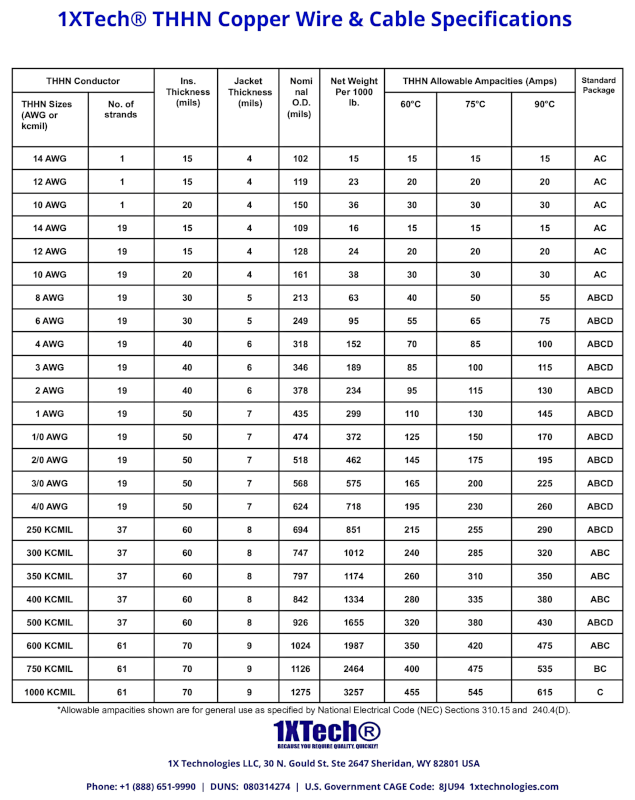

THHN Copper Wire & Cable Manufacturers Specifications, Ampacity / Amps, O.D., Weights, Temperature Rating

Type THHN or THWN-2 or MTW (also AWM) meets or exceeds all applicable ASTM specifications, UL standard 83, UL standard 1063 (MTW), Federal Specification J-C-30B, and requirements of the National Electrical Code.

THHN Manufacturer Construction:

 Type THHN or THWN-2 or MTW copper conductors are annealed (soft) copper, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) or UL-listed equal jacket is applied.  All values are nominal and subject to correction *90°C Wet/Dry Per NEC Table 310.15(B)(16) for not more than three conductors in the raceway based on 30°C ambient temperature.

THHN / THWN-2 Copper Applications:

1XTECH® Copper THHN / THWN-2 conductors are primarily used in conduit and cable trays, when approved, for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electric Code. THHN applications are suitable for use in dry locations only at temperatures not to exceed 90°C. THHN-2 applications are suitable for use in either wet or dry applications, with temperatures that do not exceed 90°C.

Conductors:

Either solid or stranded soft drawn copper, per ASTM Standards.

Insulation:

Heat and moisture resistant colored polyvinyl chloride (PVC) insulation, with clear nylon (polyamide) or UL-listed equal jacket, which provides abrasion resistance.

Standards:

• UL 83
• UL VW-1
• Size 1/0 & larger suitable for cable tray use
• MTW per UL 1063
• ASTM B1, B3, B8
• Federal Spec A-A-59544
• RoHS Compliant:  Yes –  APAC RoHS II
• EU CE Mark:  Yes
• European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• Environmental Suitability: Indoor, Outdoor, Sunlight Resistant
• Sustainability: CA Prop 65, LEED, EU 2014/95/EU, ISO9001, 1XTech® Earth Pledge

THHN Copper Wire & Cable Sizes

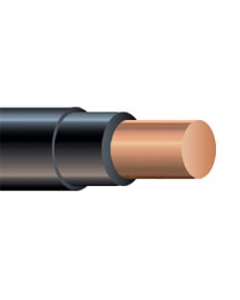

Solid THHN Sizes

14 AWG THHN/THWN-2 Solid Building Wire

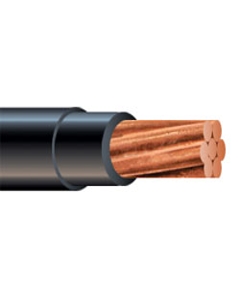

Stranded THHN Sizes

Custom XXL MCM / KCMIL THHN Large Sizes

1X Technologies manufactures THHN / THWN-2 Copper Wire in sizes exceeding 1000 MCM, up to 4000 MCM. To order these extra-large sizes if your project requires more ampacity just let your sales rep know what sizes you’d like quoted and they will get you a quick price. We excel in producing bigger sizes than standard, and we would love to hear from you. Thanks for the opportunity to help with your extra-large THHN project!

Additional Large Sized MCM / KCMIL THHN THWN Wire & Cable sizes from 1X Technologies:

• 250 MCM.
• 300 MCM.
• 350 MCM.
• 400 MCM.
• 500 MCM.
• 600 MCM.
• 750 MCM.
• 800 MCM.
• 900 MCM.
• 1000 MCM.
• 1250 MCM
• 1500 MCM.
• 1750 MCM.
• 2000 MCM.
• 2500 MCM.
• 2750 MCM.
• 3000 MCM.
• 3500 MCM.
• 4000 MCM.
• 4500 MCM.
• 5000 MCM.
• 5500 MCM.
• 6000 MCM.
