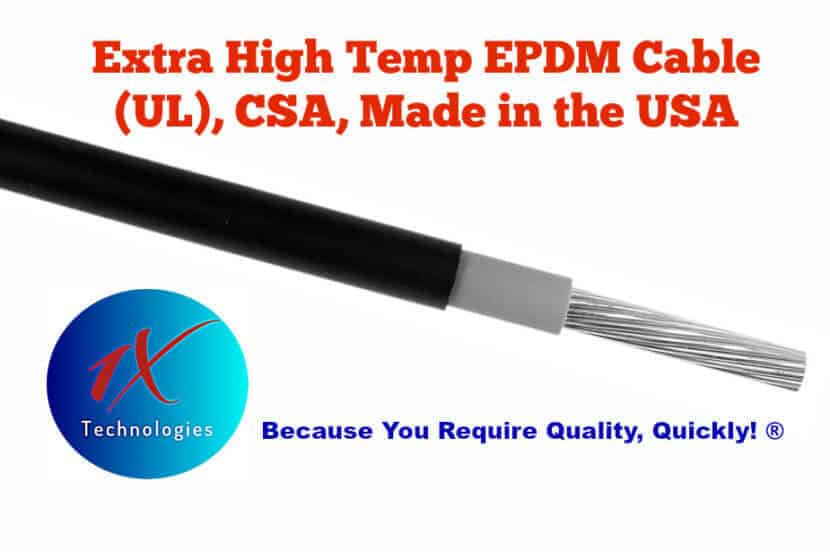

Extra High Temp EPDM Cable - Equivalent to Belden, Equal to Belden Manufacturer Supplier

Belden 37104 Equivalent, Equal Belden 37104 price

Description: 4 AWG, 105 x 24 AWG Strand, EPDM Extra high-temperature heavy duty lead wire. 150C EPDM wire is recommended for Class 130(B), 155(F) and also in some 180(H) systems. It’s UL Recognized under Style 3374 as 150C 600V Appliance Wiring Material. The CSA Listing, as a coil lead, is 125C, 600V. Tested for Non-UL special purpose applications up to 200C for limited exposure. For a current price on Belden 37104 or Equivalent manufactured in the USA and Buy American Act approved, contact 1X Technologies today. Whether you would like to buy actual Belden or an equal/alternative product we would be honored for a chance to serve you and your company as we do our loyal customers like the United States Army Corps of Engineers, Apple, Microsoft, Coca-Cola, and much more. See more about what our customer experience is like on our customer testimonials page.



Equal to Belden 37104 Specification:

Hook-up/Lead – UL AWM Style 3340 and 3374

Belden 37104 Mechanical Characteristics (Overall)

  • UL Operating Temperature Range: -55°C To +150°C
  • UL Temperature Rating: 125°C (UL AWM Style 3340), 125°C (UL AWM Style 3374), 150°C
  • Non-UL Temp Range: Up to 200°C for limited exposure, down to 65°C for limited exposure
  • Bulk Cable Weight: 196 lbs/1000 ft.
  • Overall Nominal Diameter: 0.432 in.
  • EPDM – Ethylene Propylene Diene Monomer Rubber:  0.084″ Wall
  • Stranding: 105 x 24 TC – Tinned Copper



Belden 37104 Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

  • UL AWM Style: UL Style 3340 (600 V 125°C), UL Style 3374 (600 V 125°C)
  • Non-UL Limited Special Purpose: 200°C
  • UL Rating: 600 V, 150°C
  • CSA Rating: 600 V, 125°C
  • CSA Type: CL1254
  • EU Directive 2011/65/EU
  • (ROHS II): Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • Plenum/Non-Plenum Plenum (Y/N): No
  • Buy American Act Approved / Made in the USA (Y/N): Yes



Electrical Characteristics (Overall)

  • Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 0.240
  • Max. Operating Voltage – UL: 600V RMS UL AWM 3340,  600V RMS UL AWM 3374
  • Max. Recommended Current: Single conductor in free air @ 30C ambient 190 amps



1X Technologies Belden 37104 Equivalent Specifications:

  • AWG Size: 4
  • Conductor Stranding: 105/24
  • No. of Strands: 105
  • Strand Size: 24
  • Nom. Insul. Thick. (in): 0.08
  • Nom. O.D. (in): 0.4320
  • Approx LBS/MFT: 196
  • Cond. Material: Tinned Copper
  • Insul. Material: Ethylene Propylene Diene Monomer Rubber (EPDM)
  • UL Style: 3340/3374 CSA Type CL 1254
  • UL Max. Temp: 150°C
  • UL Voltage: 600
