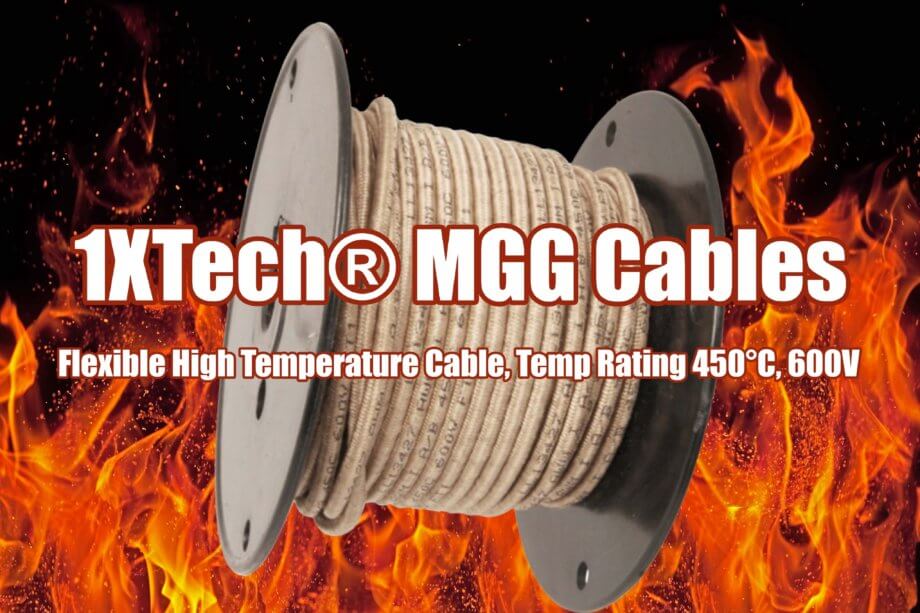

1XTech® MGG Cable, High-Temperature High-Heat 450C 600V Multi-Conductor Power & Control Manufacturers Specifications, Amps, Pricing/Cost to buy, Types, Sizes, High-Temp MGG Wire & Cables Made in the USA
My Quick MGG Cable Price✅
Include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond quickly with your MGG Wire & Cable Pricing.
If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.
MGG Cable Specifications / Manufacturing Specs
MGG Cable Construction:
- Conductor: Flexible stranded 27% nickel-plated, annealed copper
- Insulation: Phlogopite mica tape with fiberglass braid jacket
- Braid: Fiberglass braid jacket
- Cabling: Conductors are cabled with a left-hand lay
- Jacket: Fiberglass braid jacket is treated with a high-temperature saturant
MGG Cable Applications and Features:
- Used in wiring equipment that will be exposed to high temperatures. Flexible.
- Excellent flame resistance. Can withstand up to 2400°F short term. Also available in Power and Instrumentation Cables.
MGG Cable Specifications:
- UL 1277 Vertical Cable Tray Flame Tests (70,000 BTU/Hr)
- ICEA T-29-520 Flame Test (210,000 BTU/Hr)
- IEEE 383 Flame Test (70,000 BTU)
- RoHS-3 Complies with European Directive 2015/863
16 AWG MGG Cable (16/.010)
| # COND | BRAID JACKET |
CABLE OD |
WEIGHT LBS / MFT |
TEMP. RATING |
|---|---|---|---|---|
| 2 | .018 | 0.290 | 38 | 450°C |
| 3 | .018 | 0.310 | 57 | 450°C |
| 4 | .018 | 0.345 | 75 | 450°C |
| 5 | .018 | 0.380 | 93 | 450°C |
| 7 | .018 | 0.420 | 129 | 450°C |
| 9 | .018 | 0.500 | 165 | 450°C |
| 12 | .018 | 0.570 | 219 | 450°C |
| 19 | .025 | 0.695 | 342 | 450°C |
| 24 | .025 | 0.810 | 431 | 450°C |
| 37 | .025 | 0.935 | 659 | 450°C |
14 AWG MGG Cable (41/.010)
| # COND | BRAID JACKET |
CABLE OD |
WEIGHT LBS / MFT |
TEMP. RATING |
|---|---|---|---|---|
| 2 | .018 | 0.320 | 50 | 450°C |
| 3 | .018 | 0.340 | 75 | 450°C |
| 4 | .018 | 0.380 | 99 | 450°C |
| 5 | .018 | 0.420 | 122 | 450°C |
| 7 | .018 | 0.465 | 172 | 450°C |
| 9 | .018 | 0.555 | 217 | 450°C |
| 12 | .025 | 0.635 | 293 | 450°C |
| 19 | .025 | 0.760 | 450 | 450°C |
| 24 | .025 | 0.905 | 579 | 450°C |
12 AWG MGG Cable (65/.010)
| # COND | BRAID JACKET |
CABLE OD |
WEIGHT LBS / MFT |
TEMP. RATING |
|---|---|---|---|---|
| 2 | .018 | 0.350 | 67 | 450°C |
| 3 | .018 | 0.375 | 101 | 450°C |
| 4 | .018 | 0.415 | 133 | 450°C |
| 5 | .018 | 0.460 | 166 | 450°C |
| 7 | .018 | 0.510 | 231 | 450°C |
| 9 | .025 | 0.625 | 296 | 450°C |
| 12 | .025 | 0.700 | 393 | 450°C |
| 19 | .025 | 0.835 | 618 | 450°C |
| 24 | .025 | 0.995 | 799 | 450°C |
10 AWG MGG Cable (105/.010)
| # COND | BRAID JACKET |
CABLE OD |
WEIGHT LBS / MFT |
TEMP. RATING |
|---|---|---|---|---|
| 2 | .018 | 0.470 | 114 | 450°C |
| 3 | .018 | 0.505 | 170 | 450°C |
| 4 | .018 | 0.555 | 222 | 450°C |
| 5 | .025 | 0.640 | 292 | 450°C |
| 7 | .025 | 0.695 | 374 | 450°C |
| 9 | .025 | 0.830 | 485 | 450°C |
| 12 | .025 | 0.950 | 648 | 450°C |
MGG Cable PDF SPECIFICATIONS
Contact your 1X Technologies sales representative to obtain PDF specifications including Amps, O.D., and other pertinent information for your submittal.
Belden MGG Cable High Temp Equals/Equivalents
1X Technologies sells equals to Belden MGG Cable Equals in all sizes and color combinations for your high-temperature applications. Contact us today if you need an alternative to Belden high-temp cable.
How to Buy 1XTech® MGG High-Temperature Wire & Cable Locally | Re-Sellers, Distributors, and Wholesale Suppliers of 1X Technologies Generator Cords such Electrical Wholesale Suppliers, Lowes, Home Depot, and more…
Wondering how to purchase your 1X Technologies wire & cable products locally?
While we are an American manufacturer and have been around for many years, we understand you may not have ever heard of 1X Technologies and are unsure about purchasing a product from a company you don’t know, or you may do all your buying through a local supply house or even a local big-box retail store. We want the purchasing of your wire & cable to be easy for you, so whether you buy from Anixter, Graybar, Home Depot, Lowes for Pros, or a local family-owned independent electrical supply house, we want to help you.
Wholesale Electrical Supply Houses
1X Technologies sells through all major electrical distributors across the United States and Canada. We’ve sold to the largest corporations and to the smaller independent electric suppliers for many years and many of them already have open accounts with us. We can ship your order directly to your shop or job, or we can send it to your local supply house for delivery with your other items. We ship everywhere in the United States within just a couple of days, and typically lead times to Canada are within about a week (depending on customs).
You may contact your regular supply house salesperson and have them call 1-888-651-9990 or contact us through the website for your order pricing.
You may even message us through the website and give us your wholesale supplier’s email address where we can send the quote. We do this all the time!
Big Box Retail Stores
Additionally, 1X Technologies is a preferred wire & cable manufacturer supplier to both Home Depot Pro Desk and Lowes for Pros. You can go to any of your local big box stores and either print out this page or give your pro desk our phone number 1-888-651-9990 and we will gladly sell to whomever you would like to buy from.
We love supporting our wholesale and retail customers and we recognize that they offer local value that truly makes the community strong. No matter how you want to buy, contact us today and we will be happy to help you!
How to buy 1X Technologies products from other Manufacturers
If you are an electrical supply house and have an order that needs a specific item with another wire & cable manufacturer or it is a product they do not or will not produce but you would like to buy from them to keep your whole order together, you may ask your factory salesperson to reach out to us at 1-888-651-9990 to have a product private label manufactured to help fill your order.
We commonly make products for other manufacturers under their brand names and have no problem helping out another friendly competitor to help fill your order. 1X Technologies makes much larger cables than most other manufacturers and we have capabilities that they do not. Additionally, we can often produce your cable within a few short weeks, when other manufacturers have very long lead times. If you would like to order a custom product through Southwire, General Cable, Belden, or an electrical wire & cable master distributor, have them give us a call. We will be happy to help and we do it all the time.
There is a quote button above, if using mobile or tablet just tap the three red lines, if using desktop look to the top right part of your screen and click the red/orange button. Additionally, if using a mobile device you may scroll either to the top or down to the bottom of the page for more contact forms.
