SOOW 600V Portable Cord Pricing, Price, Cost, Buy, Manufacturers, Specs, Amps, Sizes, suppliers, distributors, factory

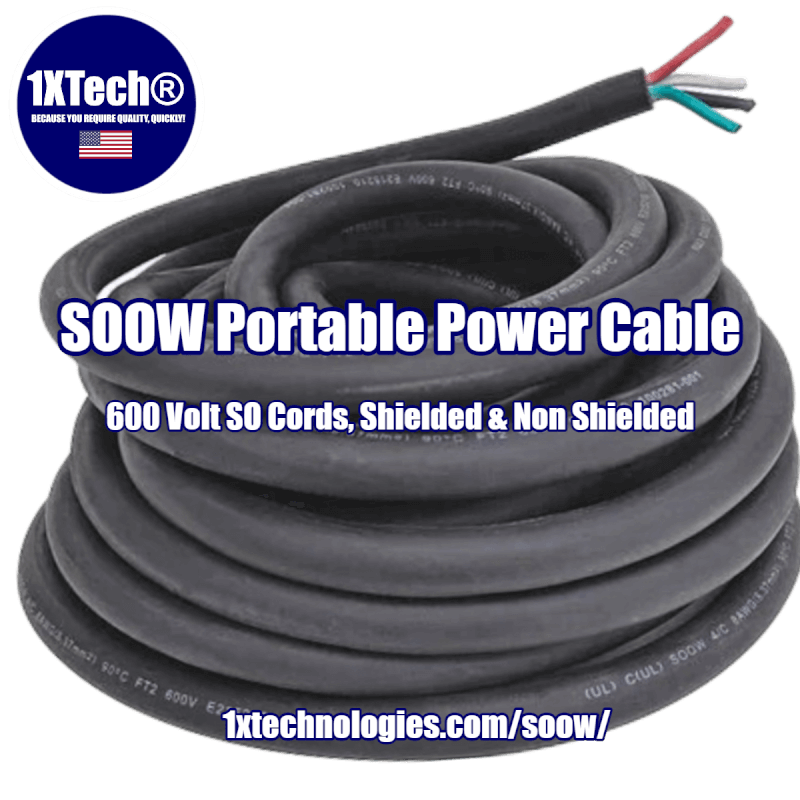

1XTech® SOOW Cable & Wire Portable Cord 600V Rubber Flexible Wire & Cable Manufacturers Specifications, Sizes, Chart, Ampacity / Amps, Pricing/Cost per foot to buy SOW-A Service Cord

1XTech® sells quality SOOW Cable Portable Cord at competitive prices and offers fully customizable cable including custom colors.  SOOW multiconductor power cables are used in your 600-volt electrical applications that require flexibility and durability such as portable industrial machinery, production equipment, and indoor/outdoor temporary power.

1XTech® SOOW Cable Portable Cord is UL Listed at 600 volts and has a temperature range of –40ºC to 90ºC.  Our Rubber SOOW Cable has many characteristics that make it an excellent choice for any of your heavy-duty jobs where regular cables will become damaged and battered and are oil, water, moisture, and sunlight resistant. Below you will have the opportunity to review SOOW Cable Specs/Specifications including ampacity/amps, Sizes, O.D., Weights, using our engineering charts.



My SOOW Cable Cable Portable Cord Price ✅

Include your quantity required, wire & cable description, and delivery location in your message, and we’ll respond quickly with your SOOW Cable Portable Cord Price/Cost per foot to buy your wire & cable today.











If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.









SOOW Cable Meaning / Definition

The definition and meaning of SOOW Cable (letters) denote particular properties of the cord:

  • S – for Service
  • O – for Oil-resistant insulation
  • O – for Oil-resistant Jacket
  • W – for Weather and Water resistance

SOOW Cable Cable Portable Cord Properties

Standards:

  • UL Flexible Cord
  • UL Subject 62
  • CSA Flexible Cord – C22.2-49
  • MSHA Approved
  • RoHS Compliant
  • OSHA Acceptable
  • FT1 and FT2 Flame Test
  • Federal Spec J-C-580B



Construction:

Conductors: 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174 Insulation: Premium-grade, color-coded 90ºC EPDM.



Color Code:

  • 2 Conductors: Black, White
  • 3 Conductors: Black, White, Green
  • 4 Conductors: Black, White, Red, Green

SOOW Portable Cord 600V UL/CSA 1X Technologies



PRINT LEGEND EXAMPLE:

1X TECHNOLOGIES ENVIROTECH® 90 XX AWG (X.XX mm2) X/C SOOW (UL) 600V-40C TO 90C — CSA FT2 WATER RESISTANT



Applications and Uses of SOOW Cable

  • Push-button remote controls
  • Portable industrial machinery and compressors
  • Water purification systems
  • Portable tools
  • Industrial and processing equipment
  • Construction equipment
  • Cranes and hoists
  • Track systems
  • Battery chargers
  • Portable appliances
  • Motors and associated machinery
  • Electrical equipment exposed to oil, solvents, flame, and moisture









Belden SOOW Cable Cable Portable Cord Equals/Equivalents

https://youtu.be/V6-LxvGLeWo

1X Technologies sells equals to Belden SOOW Cable Portable Cordage Equals in all sizes and color combinations. Contact us today if you need an alternative to Belden SO Cord.







18 AWG – 10 AWG SOOW [Wire & Cable Sizes, Specs, Amps, Pricing]

1XTech® 18 AWG through 10 AWG SOOW Cable Portable Cord Electrical Wire & Cable Products Specs, Amps, Price per foot, and other pertinent data are listed below for our most popular sizes and conductor counts. Keep in mind, in addition to these sizes, we can manufacture custom sizes, colors, jackets, armor, shielding on any cable of your choice. Call now for pricing: 1-888-651-9990

18/2 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.345 inches
  6. Weight: 0.07 lbs per ft
  7. Current Amps: 10
  8. Color Code: 2 Conductors – Black, White
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/2 SO cord, 18/3 rubber wire, 18 gauge 3 wire flexible cord, 18/3 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 2C SOOW Cable







18/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.365 inches
  6. Weight: 0.085 lbs per ft
  7. Current Amps: 10
  8. Color Code: 3 Conductors – Black, White, Green
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/3 SO cord, 18/3 rubber wire, 18 gauge 3 wire flexible cord, 18/3 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 3C SOOW Cable







18/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.390 inches
  6. Weight: 0.100 lbs per ft
  7. Current Amps: 7
  8. Color Code: 4 Conductors – Black, White, Red, Green
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/4 SO cord, 18/4 rubber wire, 18 gauge 4 wire flexible cord, 18/4 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 4C SOOW Cable







18/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.465 inches
  6. Weight: 0.141 lbs per ft
  7. Current Amps: 5.6
  8. Color Code: 5 Conductors – Black, White, Red, Green, Orange
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/5 SO cord, 18/5 rubber wire, 18 gauge 5 wire flexible cord, 18/5 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 5C SOOW Cable







18/6 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 6
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.500 inches
  6. Weight: 0.15 lbs per ft
  7. Current Amps: 5.6
  8. Color Code: 6 Conductors – Black, White, Red, Green, Orange, Blue
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/6 SO cord, 18/6 rubber wire, 18 gauge 6 wire flexible cord, 18/6 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 6C SOOW Cable







18/7 SOOW Cable Portable Cord 600V UL/CSA

  • Size: 18 AWG
  • Number of Conductors: 7
  • Conductor Strand: 16/30
  • Insulation Thickness: 0.030 inches
  • Outside Diameter: 0.530 inches
  • Weight: 0.17 lbs per ft
  • Current Amps: 3.5
  • Color Code: 7 Conductors – Black, White, Red, Green, Orange, Blue, White with Black Stripe
  • Standard Jacket Colors: Black, Yellow, or White
  • Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  • Custom Service Cord Striping / Printing Available: Yes
  • Also Known As: 18/7 SO cord, 18/7 rubber wire, 18 gauge 7 wire flexible cord, 18/7 oil-resistant outdoor cable 600V
  • Pricing:  My Price / Cost per foot to buy 18 AWG 7C SOOW Cable









18/8 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 8
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.530 inches
  6. Weight: 0.17 lbs per ft
  7. Current Amps: 3.5
  8. Color Code: 8 Conductors – Black, White, Red, Green, Orange, Blue, White with Black Stripe, Red with Black Stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/8 SO cord, 18/8 rubber wire, 18 gauge 8 wire flexible cord, 18/8 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 8C SOOW Cable









18/9 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 9
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.555 inches
  6. Weight: 0.189 lbs per ft
  7. Current Amps: 4.9
  8. Color Code: 9 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/9 SO cord, 18/9 rubber wire, 18 gauge 9 wire flexible cord, 18/9 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 9C SOOW Cable









18/10 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 10
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.585 inches
  6. Weight: 0.215 lbs per ft
  7. Current Amps: 3.5
  8. Color Code: 10 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe, Orange + Black stripe.
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/10 SO cord, 18/10 rubber wire, 18 gauge 10 wire flexible cord, 18/10 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 7C SOOW Cable









18/12 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 12
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.615 inches
  6. Weight: 0.245 lbs per ft
  7. Current Amps: 3.5
  8. Color Code: 12 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe, Orange + Black stripe, Blue + Black, Black + White,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/12 SO cord, 18/12 rubber wire, 18 gauge 12 wire flexible cord, 18/12 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 12C SOOW Cable











18/14 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 14
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.630 inches
  6. Weight: 0.265 lbs per ft
  7. Current Amps: 3.5
  8. Color Code: 14 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe, Orange + Black stripe, Blue + Black, Black + White, Red + White, Green + White
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/14 SO cord, 18/14 rubber wire, 18 gauge 14 wire flexible cord, 18/14 oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 14C SOOW Cable











18/16 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 16
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.715 inches
  6. Weight: 0.310 lbs per ft
  7. Current Amps: 3.5
  8. Color Code: 16 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe, Orange + Black stripe, Blue + Black, Black + White, Red + White, Green + White, Blue + White, Black + Red
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/16 SO cord, 18/16 rubber wire, 18 gauge 16C wire flexible cord, 18 AWG 16C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 16C SOOW Cable











18/20 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 20
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.770 inches
  6. Weight: 0.375 lbs per ft
  7. Current Amps: 3.5
  8. Color Code: 20 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe, Orange + Black stripe, Blue + Black, Black + White, Red + White, Green + White, Blue + White, Black + Red, White + Red, Orange + Red, Blue + Red, Red + Green
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/20 SO cord, 18/20 rubber wire, 18 gauge 20 wire flexible cord, 18 AWG 20C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 7C SOOW Cable









18/24 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 24
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.830 inches
  6. Weight: 0.450 lbs per ft
  7. Current Amps: 3.1
  8. Color Code: 24 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black, 12. Black + White, 13. Red + White, 14. Green + White, 15. Blue + White, 16. Black + Red, 17. White + Red, 18. Orange + Red, 19. Blue + Red, 20. Red + Green, 21. Orange + Green  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 18/24 SO cord, 18/24 rubber wire, 18 gauge 24C wire flexible cord, 18 AWG 24C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 18 AWG 24C SOOW Cable









18/30 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 30
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.905 inches
  6. Weight: 0.520 lbs per ft
    Current Amps: 3.1
  7. Color Code: 30 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 18/30 SO cord, 18/30 rubber wire, 18 gauge 30C wire flexible cord, 18 AWG 30C oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 18 AWG 30C SOOW Cable









16/2 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.370 inches
  6. Weight: 0.080 lbs per ft
  7. Current Amps: 13
  8. Color Code: 2 Conductors – Black, White
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/2 SO cord, 16/2 rubber wire, 16 gauge 2C wire flexible cord, 16 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 2C SOOW Cable







16/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.390 inches
  6. Weight: 0.105 lbs per ft
  7. Current Amps: 13
  8. Color Code: 3 Conductors – Black, White, Green
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/3 SO cord, 16/3 rubber wire, 16 gauge 3C wire flexible cord, 16 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 3C SOOW Cable







16/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.420 inches
  6. Weight: 0.120 lbs per ft
  7. Current Amps: 10
  8. Color Code: 4 Conductors – Black, White, Red, Green
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/4 SO cord, 16/4 rubber wire, 16 gauge 4C wire flexible cord, 16 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 4C SOOW Cable







16/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.500 inches
  6. Weight: 0.160 lbs per ft
  7. Current Amps: 8
  8. Color Code: 5 Conductors – Black, White, Red, Green, Orange
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/5 SO cord, 16/5 rubber wire, 16 gauge 5C wire flexible cord, 16 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 5C SOOW Cable





16/6 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 6
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.535 inches
  6. Weight: 0.220 lbs per ft
  7. Current Amps: 7
  8. Color Code: 6 Conductors – Black, White, Red, Green, Orange, Blue
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/6 SO cord, 16/6 rubber wire, 16 gauge 6C wire flexible cord, 16 AWG 6C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 6C SOOW Cable







16/7 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 7
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.535 inches
  6. Weight: 0.195 lbs per ft
  7. Current Amps: 7
  8. Color Code: 7 Conductors – Black, White, Red, Green, Orange, Blue, White with Black Stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/7 SO cord, 16/7 rubber wire, 16 gauge 7C wire flexible cord, 16 AWG 7C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 7C SOOW Cable









16/8 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 8
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.575 inches
  6. Weight: 0.220 lbs per ft
  7. Current Amps: 7
  8. Color Code: 8 Conductors – Black, White, Red, Green, Orange, Blue, White with Black Stripe, Red with Black Stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/8 SO cord, 16/8 rubber wire, 16 gauge 8C wire flexible cord, 16 AWG 8C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 8C SOOW Cable







16/9 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 9
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.610 inches
  6. Weight: 0.250 lbs per ft
  7. Current Amps: 7
  8. Color Code: 9 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/9 SO cord, 16/9 rubber wire, 16 gauge 9C wire flexible cord, 16 AWG 9C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 9C SOOW Cable









16/10 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 10
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.635 inches
  6. Weight: 0.280 lbs per ft
  7. Current Amps: 5
  8. Color Code: 10 Conductors – Black, White, Red, Green, Orange, Blue, White + Black Stripe, Red + Black Stripe, Green + Black Stripe, Orange + Black stripe.
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/10 SO cord, 16/10 rubber wire, 16 gauge 10C wire flexible cord, 16 AWG 10C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 10C SOOW Cable











16/12 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 12
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.695 inches
  6. Weight: 0.325 lbs per ft
  7. Current Amps: 5
  8. Color Code: 12 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/12 SO cord, 16/12 rubber wire, 16 gauge 12C wire flexible cord, 16 AWG 12C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 12C SOOW Cable









16/14 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 14
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.740 inches
  6. Weight: 0.355 lbs per ft
  7. Current Amps: 5
  8. Color Code: 14 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/14 SO cord, 16/14 rubber wire, 16 gauge 14C wire flexible cord, 16 AWG 14C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 14C SOOW Cable









16/16 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 16
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.780 inches
  6. Weight: 0.380 lbs per ft
  7. Current Amps: 5
  8. Color Code: 16 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/16 SO cord, 16/16 rubber wire, 16 gauge 16C wire flexible cord, 16 AWG 16C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 16C SOOW Cable









16/18 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 18
    Conductor Strand: 26/30
  3. Insulation Thickness: 0.030 inches
  4. Outside Diameter: 0.815 inches
  5. Weight: 0.425 lbs per ft
  6. Current Amps: 5
  7. Color Code: 18 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 16/18 SO cord, 16/18 rubber wire, 16 gauge 18C wire flexible cord, 16 AWG 18C oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 16 AWG 18C SOOW Cable









16/20 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 20
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.835 inches
  6. Weight: 0.480 lbs per ft
  7. Current Amps: 5
  8. Color Code: 30 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/20 SO cord, 16/20 rubber wire, 16 gauge 20C wire flexible cord, 16 AWG 20C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 20C SOOW Cable









16/24 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 24
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.905 inches
  6. Weight: 0.510 lbs per ft
  7. Current Amps: 4.5
  8. Color Code: 24 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/24 SO cord, 16/24 rubber wire, 16 gauge 24C wire flexible cord, 16 AWG 24C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 24C SOOW Cable











16/30 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 30
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 1.020 inches
  6. Weight: 0.715 lbs per ft
  7. Current Amps: 4.5
  8. Color Code: 30 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/30 SO cord, 16/30 rubber wire, 16 gauge 30C wire flexible cord, 16 AWG 30C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 30C SOOW Cable









16/37 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 37
  3. Conductor Strand: 26/30
  4. Jacket Thickness: 1.10 inches
  5. Outside Diameter: 1.107 inches
  6. Weight: 0.730 lbs per ft
  7. Current Amps: 4.0
  8. Color Code: 37 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/37 SO cord, 16/37 rubber wire, 16 gauge 37C wire flexible cord, 16 AWG 37C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 37C SOOW Cable









16/40 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 40
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 1.130 inches
  6. Weight: 0.850 lbs per ft
  7. Current Amps: 4
  8. Color Code: 40 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/40 SO cord, 16/40 rubber wire, 16 gauge 40C wire flexible cord, 16 AWG 40C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 40C SOOW Cable









16/60 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 60
  3. Conductor Strand: 26/30
  4. Jacket Thickness: 1.25 inches
  5. Outside Diameter: 1.35 inches
  6. Weight: 1.7154 lbs per ft
  7. Current Amps: 3.5
  8. Color Code: 60 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/60 SO cord, 16/60 rubber wire, 16 gauge 60C wire flexible cord, 16 AWG 60C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 60C SOOW Cable









14/2 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.510 inches
  6. Weight: 0.135 lbs per ft
  7. Current Amps: 18
  8. Color Code: 2 Conductors – 1. Black, 2. White,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/2 SO cord, 14/2 rubber wire, 14 gauge 2C wire flexible cord, 14 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 2C SOOW Cable









14/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.535 inches
  6. Weight: 0.170 lbs per ft
  7. Current Amps: 18
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/3 SO cord, 14/3 rubber wire, 14 gauge 3C wire flexible cord, 14 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 3C SOOW Cable







14/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.575 inches
  6. Weight: 0.205 lbs per ft
  7. Current Amps: 15
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/4 SO cord, 14/4 rubber wire, 14 gauge 4C wire flexible cord, 14 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 4C SOOW Cable







14/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.655 inches
  6. Weight: 0.275 lbs per ft
  7. Current Amps: 12
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/5 SO cord, 14/5 rubber wire, 14 gauge 5C wire flexible cord, 14 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 5C SOOW Cable







14/6 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 6
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.705 inches
  6. Weight: 0.315 lbs per ft
  7. Current Amps: 10.5
  8. Color Code: 6 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/6 SO cord, 14/6 rubber wire, 14 gauge 6C wire flexible cord, 14 AWG 6C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 6C SOOW Cable









14/7 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 7
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.705 inches
  6. Weight: 0.345 lbs per ft
  7. Current Amps: 10.5
  8. Color Code: 7 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/7 SO cord, 14/7 rubber wire, 14 gauge 7C wire flexible cord, 14 AWG 7C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 7C SOOW Cable









14/8 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 8
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.760 inches
  6. Weight: 0.385 lbs per ft
  7. Current Amps: 10.5
  8. Color Code: 8 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/8 SO cord, 14/8 rubber wire, 14 gauge 8C wire flexible cord, 14 AWG 8C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 8C SOOW Cable









14/10 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 10
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.840 inches
  6. Weight: 0.430 lbs per ft
  7. Current Amps: 7.5
  8. Color Code: 10 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/10 SO cord, 14/10 rubber wire, 14 gauge 10C wire flexible cord, 14 AWG 10C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 10C SOOW Cable



14/12 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 12
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.885 inches
  6. Weight: 0.485 lbs per ft
  7. Current Amps: 7.5
  8. Color Code: 12 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/12 SO cord, 14/12 rubber wire, 14 gauge 12C wire flexible cord, 14 AWG 12C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 12C SOOW Cable







14/14 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 14
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.945 inches
  6. Weight: 0.59 lbs per ft
  7. Current Amps: 7.5
  8. Color Code: 14 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/14 SO cord, 14/14 rubber wire, 14 gauge 14C wire flexible cord, 14 AWG 14C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 14C SOOW Cable









14/16 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 16
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.025 inches
  6. Weight: 0.665 lbs per ft
  7. Current Amps: 7.5
  8. Color Code: 16 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/16 SO cord, 14/16 rubber wire, 14 gauge 16C wire flexible cord, 14 AWG 16C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 16C SOOW Cable











14/20 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 20
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.105 inches
  6. Weight: 0.780 lbs per ft
  7. Current Amps: 7.5
  8. Color Code: 20 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/20 SO cord, 14/20 rubber wire, 14 gauge 20C wire flexible cord, 14 AWG 20C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 20C SOOW Cable











14/24 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 24
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.200 inches
  6. Weight: 0.985 lbs per ft
  7. Current Amps: 6.8
  8. Color Code: 24 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/24 SO cord, 14/24 rubber wire, 14 gauge 24C wire flexible cord, 14 AWG 24C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 24C SOOW Cable













14/30 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 30
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.445 inches
  6. Weight: 1.13 lbs per ft
  7. Current Amps: 6
  8. Color Code: 30 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/30 SO cord, 14/30 rubber wire, 14 gauge 30C wire flexible cord, 14 AWG 30C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 30C SOOW Cable









14/37 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 37
  3. Conductor Strand: 41/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.445 inches
  6. Weight: 1.330 lbs per ft
  7. Current Amps: 6
  8. Color Code: 37 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/37 SO cord, 14/37 rubber wire, 14 gauge 37C wire flexible cord, 14 AWG 37C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 37C SOOW Cable









12/2 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.570 inches
  6. Weight: 0.168 lbs per ft
  7. Current Amps: 25
  8. Color Code: 2 Conductors – 1. Black, 2. White,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/2 SO cord,12/2 rubber wire, 12 gauge 2C wire flexible cord, 12 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 2C SOOW Cable











12/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.595 inches
  6. Weight: 0.223 lbs per ft
  7. Current Amps: 25
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/3 SO cord, 12/3 rubber wire, 12 gauge 3C wire flexible cord, 12 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 3C SOOW Cable









12/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.650 inches
  6. Weight: 0.276 lbs per ft
  7. Current Amps: 20
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/4 SO cord, 12/4 rubber wire, 12 gauge 4C wire flexible cord, 14 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 4C SOOW Cable

12/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.715 inches
  6. Weight: 0.326 lbs per ft
  7. Current Amps: 16
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/5 SO cord, 12/5 rubber wire, 12 gauge 5C wire flexible cord, 12 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 5C SOOW Cable









12/6 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 6
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.740 inches
  6. Weight: 0.362 lbs per ft
  7. Current Amps: 16
  8. Color Code: 6 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/6 SO cord, 12/6 rubber wire, 12 gauge 6C wire flexible cord, 12 AWG 6C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 6C SOOW Cable









12/7 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 7
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.790 inches
  6. Weight: 0.415 lbs per ft
  7. Current Amps: 16
  8. Color Code: 7 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/7 SO cord, 12/7 rubber wire, 12 gauge 7C wire flexible cord, 12 AWG 7C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 7C SOOW Cable









12/8 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 8
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.825 inches
  6. Weight: 0.464 lbs per ft
  7. Current Amps: 14
  8. Color Code: 8 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/8 SO cord, 12/8 rubber wire, 12 gauge 8C wire flexible cord, 12 AWG 8C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 8C SOOW Cable









12/9 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 9
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.900 inches
  6. Weight: 0.510 lbs per ft
  7. Current Amps: 14
  8. Color Code: 9 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/9 SO cord, 12/9 rubber wire, 12 gauge 9C wire flexible cord, 12 AWG 9C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 9C SOOW Cable











12/10 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 10
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.950 inches
  6. Weight: 0.649 lbs per ft
  7. Current Amps: 14
  8. Color Code: 10 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/10 SO cord, 12/10 rubber wire, 12 gauge 10C wire flexible cord, 12 AWG 10C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 10C SOOW Cable









12/12 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 12
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.010 inches
  6. Weight: 0.662 lbs per ft
  7. Current Amps: 10
  8. Color Code: 12 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/12 SO cord, 12/12 rubber wire, 12 gauge 12C wire flexible cord, 12 AWG 12C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 12C SOOW Cable















12/14 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 14
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.020 inches
  6. Weight: 0.724 lbs per ft
  7. Current Amps: 10
  8. Color Code: 14 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/14 SO cord, 12/14 rubber wire, 12 gauge 14C wire flexible cord, 12 AWG 14C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 14C SOOW Cable









12/16 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 16
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.135 inches
  6. Weight: 0.869 lbs per ft
  7. Current Amps: 10
  8. Color Code: 16 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/16 SO cord, 12/16 rubber wire, 12 gauge 16C wire flexible cord, 12 AWG 16C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 16C SOOW Cable









12/20 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 20
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.175 inches
  6. Weight: 0.977 lbs per ft
  7. Current Amps: 10
  8. Color Code: 20 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/20 SO cord, 12/20 rubber wire, 12 gauge 20C wire flexible cord, 12 AWG 20C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 20C SOOW Cable









12/24 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 24
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.360 inches
  6. Weight: 1.236 lbs per ft
  7. Current Amps: 9
  8. Color Code: 24 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/24 SO cord, 12/24 rubber wire, 12 gauge 24C wire flexible cord, 12 AWG 24C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 24C SOOW Cable











12/26 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 26
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.380 inches
  6. Weight: 1.309 lbs per ft
  7. Current Amps: 9
  8. Color Code: 26 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/26 SO cord, 12/26 rubber wire, 12 gauge 26C wire flexible cord, 12 AWG 26C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 26C SOOW Cable











12/30 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 30
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.455 inches
  6. Weight: 1.512 lbs per ft
  7. Current Amps: 9
  8. Color Code: 30 Conductors –1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/30 SO cord, 12/30 rubber wire, 12 gauge 30C wire flexible cord, 12 AWG 30C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 30C SOOW Cable













 12/37 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 37
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.530 inches
  6. Weight: 1.588 lbs per ft
  7. Current Amps: 8
  8. Color Code: 37 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/37 SO cord, 12/37 rubber wire, 12 gauge 37C wire flexible cord, 12 AWG 37C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 37C SOOW Cable









12/44 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 44
  3. Conductor Strand: 65/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.720 inches
  6. Weight: 1.868 lbs per ft
  7. Current Amps: 7
  8. Color Code: 44 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe, 21. Orange + Green stripe  (SO Cord Color Code repeats after 21 conductors)
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 12/44 SO cord, 12/44 rubber wire, 12 gauge 44C wire flexible cord, 12 AWG 44C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 12 AWG 44C SOOW Cable











10/2 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.620 inches
  6. Weight: 0.215 lbs per ft
  7. Current Amps: 30
  8. Color Code: 2 Conductors – 1. Black, 2. White,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/2 SO cord, 10/2 rubber wire, 10 gauge 2C wire flexible cord, 10 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 2C SOOW Cable











10/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.660 inches
  6. Weight: 0.290 lbs per ft
  7. Current Amps: 30
  8. Color Code: 3 Conductors – 1. Black, 2. White, 3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/3 SO cord, 10/3 rubber wire, 10 gauge 3C wire flexible cord, 10 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 3C SOOW Cable









10/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.710 inches
  6. Weight: 0.350 lbs per ft
  7. Current Amps: 25
  8. UL Listed: Yes
  9. CSA Certification: Approved
  10. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  11. Standard Jacket Colors: Black, Yellow, or White
  12. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  13. Custom Service Cord Striping / Printing Available: Yes
  14. Also Known As: 10/4 SO cord, 10/4 rubber wire, 10 gauge 4C wire flexible cord, 10 AWG 4C oil-resistant outdoor cable 600V
  15. Pricing:  My Price / Cost per foot to buy 10 AWG 4C SOOW Cable









10/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.775 inches
  6. Weight: 0.465 lbs per ft
  7. Current Amps: 20
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/5 SO cord, 10/5 rubber wire, 10 gauge 5C wire flexible cord, 10 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 5C SOOW Cable









10/6 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 6
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.840 inches
  6. Weight: 0.500 lbs per ft
  7. Current Amps: 20
  8. Color Code: 6 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/6 SO cord, 10/6 rubber wire, 10 gauge 6C wire flexible cord, 10 AWG 6C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 6C SOOW Cable









10/7 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 7
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.840 inches
  6. Weight: 0.563 lbs per ft
  7. Current Amps: 17.5
  8. Color Code: 7 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/7 SO cord, 10/7 rubber wire, 10 gauge 7C wire flexible cord, 10 AWG 7C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 7C SOOW Cable









10/8 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 8
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.935 inches
  6. Weight: 0.682 lbs per ft
  7. Current Amps: 17.5
  8. Color Code: 8 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/8 SO cord, 10/8 rubber wire, 10 gauge 8C wire flexible cord, 10 AWG 8C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 8C SOOW Cable









10/9 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 9
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.00 inches
  6. Weight: 0.695 lbs per ft
  7. Current Amps: 20
  8. Color Code: 9 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/9 SO cord, 10/9 rubber wire, 10 gauge 9C wire flexible cord, 10 AWG 9C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 9C SOOW Cable









10/10 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 10
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.040 inches
  6. Weight: 0.765 lbs per ft
  7. Current Amps: 17.5
  8. Color Code: 10 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/10 SO cord, 10/10 rubber wire, 10 gauge 10C wire flexible cord, 10 AWG 10C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 10C SOOW Cable









10/12 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 12
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.095 inches
  6. Weight: 0.865 lbs per ft
  7. Current Amps: 12.5
  8. Color Code: 12 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/12 SO cord, 10/12 rubber wire, 10 gauge 12C wire flexible cord, 10 AWG 12C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 12C SOOW Cable







10/16 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 16
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.230 inches
  6. Weight: 1.147 lbs per ft
  7. Current Amps: 17.5
  8. Color Code: 16 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/16 SO cord, 10/16 rubber wire, 10 gauge 16C wire flexible cord, 10 AWG 16C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 16C SOOW Cable









10/20 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 10 AWG
  2. Number of Conductors: 20
  3. Conductor Strand: 104/30
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 1.365 inches
  6. Weight: 1.445 lbs per ft
  7. Current Amps: 12.5
  8. Color Code: 30 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe, 13. Red + White stripe, 14. Green + White stripe, 15. Blue + White stripe, 16. Black + Red stripe, 17. White + Red stripe, 18. Orange + Red stripe, 19. Blue + Red stripe, 20. Red + Green stripe,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 10/20 SO cord, 10/20 rubber wire, 10 gauge 20C wire flexible cord, 10 AWG 20C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 10 AWG 20C SOOW Cable



SOOW Cable 1X Technologies SO Cord Manufacturers Suppliers
Large Sized SOOW Cable 8 AWG 2C to 2 AWG 5C































8 AWG – 2 AWG SOOW [Wire & Cable Sizes, Specs, Amps, Pricing]

1XTech® 8 AWG through 2 AWG large sizes of SOOW Cable Portable Cord Electrical Wire & Cable Products Specs, Amps, Price per foot, and other pertinent data are listed below for our most popular sizes and conductor counts. Keep in mind, in addition to these sizes, we can manufacture custom sizes, colors, jackets, armor, shielding on any cable of your choice. Call now for pricing: 1-888-651-9990

8/2 SOOW Cable Portable Cord 600V Non UL

  1. Size: 8 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 65/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.660 inches
  6. Weight: 0.278 lbs per ft
  7. Current Amps: 40
  8. Color Code: 2 Conductors – 1. Black, 2. White,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 8/2 SO cord, 8/2 rubber wire, 8 gauge 2C wire flexible cord, 8 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 8 AWG 2C SOOW Cable









8/3 SOOW Cable Portable Cord 600V Non UL

  1. Size: 8 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 65/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.695 inches
  6. Weight: 0.375 lbs per ft
  7. Current Amps: 40
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 8/3 SO cord, 8/3 rubber wire, 8 gauge 3C wire flexible cord, 8 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 8 AWG 3C SOOW Cable







8/4 SOOW Cable Portable Cord 600V Non UL

  1. Size: 8 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 65/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.760 inches
  6. Weight: 0.480 lbs per ft
  7. Current Amps: 35
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 8/4 SO cord, 8/4 rubber wire, 8 gauge 4C wire flexible cord, 8 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 8 AWG 4C SOOW Cable









8/5 SOOW Cable Portable Cord 600V Non UL

  1. Size: 8 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 65/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.840 inches
  6. Weight: 0.570 lbs per ft
  7. Current Amps: 28
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 8/5 SO cord, 8/5 rubber wire, 8 gauge 5C wire flexible cord, 8 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 8 AWG 5C SOOW Cable







6/2 SOOW Cable Portable Cord 600V Non UL

  1. Size: 6 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 101/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.717″ min / 0.757″ max
  6. Weight: 0.388 lbs per ft
  7. Current Amps: 55
  8. Color Code: 2 Conductors – 1. Black, 2. White,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 6/2 SO cord, 6/2 rubber wire, 6 gauge 2C wire flexible cord, 6 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 6 AWG 2C SOOW Cable









6/3 SOOW Cable Portable Cord 600V Non UL

  1. Size: 6 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 101/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.790 inches
  6. Weight: 0.510 lbs per ft
  7. Current Amps: 55
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 6/3 SO cord, 6/3 rubber wire, 6 gauge 3C wire flexible cord, 6 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 6 AWG 3C SOOW Cable







6/4 SOOW Cable Portable Cord 600V Non UL

  1. Size: 6 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 101/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.865 inches
  6. Weight: 0.615 lbs per ft
  7. Current Amps: 45
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 6/4 SO cord, 6/4 rubber wire, 6 gauge 4C wire flexible cord, 6 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 6 AWG 4C SOOW Cable











6/5 SOOW Cable Portable Cord 600V Non UL

  1. Size: 6 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 101/26
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.945 inches
  6. Weight: 0.810 lbs per ft
  7. Current Amps: 36
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 6/5 SO cord, 6/5 rubber wire, 6 gauge 5C wire flexible cord, 6 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 6 AWG 5C SOOW Cable









4/2 SOOW Cable Portable Cord 600V Non UL

  1. Size: 4 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 119/25
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.860 inches
  6. Weight: 0.515 lbs per ft
  7. Current Amps: 70
  8. Color Code: 2 Conductors – 1. Black, 2. White,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 4/2 SO cord, 4/2 rubber wire, 4 gauge 2C wire flexible cord, 4 AWG 2C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 4 AWG 2C SOOW Cable









4/3 SOOW Cable Portable Cord 600V Non UL

  1. Size: 4 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 119/25
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 0.915 inches
  6. Weight: 0.680 lbs per ft
  7. Current Amps: 70
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 4/3 SO cord, 4/3 rubber wire, 4 gauge 3C wire flexible cord, 4 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 4 AWG 3C SOOW Cable









4/4 SOOW Cable Portable Cord 600V Non UL

  1. Size: 4 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 119/25
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 1.000 inches
  6. Weight: 0.845 lbs per ft
  7. Current Amps: 60
  8. Color Code: 4 Conductors – 1. Black, 2 White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 4/4 SO cord, 4/4 rubber wire, 4 gauge 4C wire flexible cord, 4 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 4 AWG 4C SOOW Cable









4/5 SOOW Cable Portable Cord 600V Non UL

  1. Size: 4 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 119/25
  4. Insulation Thickness: 0.050 inches
  5. Outside Diameter: 1.095 inches
  6. Weight: 1.140 lbs per ft
  7. Current Amps: 48
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 4/5 SO cord, 4/5 rubber wire, 4 gauge5C wire flexible cord, 4 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 4 AWG 5C SOOW Cable









2/3 SOOW Cable Portable Cord 600V Non UL

  1. Size: 2 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 133/.0211
  4. Insulation Thickness: 0.055 inches
  5. Outside Diameter: 1.085 inches
  6. Weight: 0.985 lbs per ft
  7. Current Amps: 95
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 2/3 SO cord, 2/3 rubber wire, 2 gauge 3C wire flexible cord, 2 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 2 AWG 3C SOOW Cable









2/4 SOOW Cable Portable Cord 600V Non UL

  1. Size: 2 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 133/.0211
  4. Insulation Thickness: 0.055 inches
  5. Outside Diameter: 1.170 inches
  6. Weight: 1.245 lbs per ft
  7. Current Amps: 80
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 2/4 SO cord, 2/4 rubber wire, 2 gauge 4C wire flexible cord, 2 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 2 AWG 4C SOOW Cable









2/5 SOOW Cable Portable Cord 600V Non UL

  1. Size: 2 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 133/.0211
  4. Insulation Thickness: 0.055 inches
  5. Outside Diameter: 1.390 inches
  6. Weight: 1.650 lbs per ft
  7. Current Amps: 64
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 2/5 SO cord, 2/5 rubber wire, 2 gauge 5C wire flexible cord, 2 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 2 AWG 5C SOOW Cable









8/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 8 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 133/29
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 0.840 inches
  6. Weight: 0.525 lbs per ft
  7. Current Amps: 40
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 8/3 SO cord, 8/3 rubber wire, 8 gauge 3C wire flexible cord, 8 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 8 AWG 3C SOOW Cable









8/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 8 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 133/29
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 0.945 inches
  6. Weight: 0.580 lbs per ft
  7. Current Amps: 35
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 8/4 SO cord, 8/4 rubber wire, 8 gauge 4C wire flexible cord, 8 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 8 AWG 4C SOOW Cable









8/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 8 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 133/29
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.030 inches
  6. Weight: 0.700 lbs per ft
  7. Current Amps: 28
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 8/5 SO cord, 8/5 rubber wire, 8 gauge 5C wire flexible cord, 8 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 8 AWG 5C SOOW Cable









6/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 6 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 133/27
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 0.980 inches
  6. Weight: 0.637 lbs per ft
  7. Current Amps: 55
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 6/3 SO cord, 6/3 rubber wire, 6 gauge 3C wire flexible cord, 6 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 6 AWG 3C SOOW Cable









6/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 6 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 133/27
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.080 inches
  6. Weight: 0.830 lbs per ft
  7. Current Amps: 45
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 6/4 SO cord, 6/4 rubber wire, 6 gauge 4C wire flexible cord, 6 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 6 AWG 4C SOOW Cable









6/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 6 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 133/27
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.200 inches
  6. Weight: 1.015 lbs per ft
  7. Current Amps: 36
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 6/5 SO cord, 6/5 rubber wire, 6 gauge 5C wire flexible cord, 6 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 6 AWG 5C SOOW Cable









4/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 4 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 133/25
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.140 inches
  6. Weight: 0.926 lbs per ft
  7. Current Amps: 70
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 4/3 SO cord, 4/3 rubber wire, 4 gauge 3C wire flexible cord, 4 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 4 AWG 3C SOOW Cable









4/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 4 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 133/25
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.260 inches
  6. Weight: 1.145 lbs per ft
  7. Current Amps: 60
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 4/4 SO cord, 4/4 rubber wire, 4 gauge 4C wire flexible cord, 4 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 4 AWG 4C SOOW Cable









4/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 4 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 119/25
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.365 inches
  6. Weight: 1.419 lbs per ft
  7. Current Amps: 48
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 4/5 SO cord, 4/5 rubber wire, 4 gauge 5C wire flexible cord, 4 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 4 AWG 3C SOOW Cable









2/3 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 2 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 133/23
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.330 inches
  6. Weight: 1.367 lbs per ft
  7. Current Amps: 95
  8. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 2/3 SO cord, 2/3 rubber wire, 2 gauge 3C wire flexible cord, 2 AWG 3C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 2 AWG 3C SOOW Cable









2/4 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 2 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 133/23
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.460 inches
  6. Weight: 1.699 lbs per ft
  7. Current Amps: 80
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 2/4 SO cord, 2/4 rubber wire, 2 gauge 4C wire flexible cord, 2 AWG 4C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 2 AWG 4C SOOW Cable









2/5 SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 2 AWG
  2. Number of Conductors: 5
  3. Conductor Strand: 133/23
  4. Insulation Thickness: 0.060 inches
  5. Outside Diameter: 1.580 inches
  6. Weight: 2.066 lbs per ft
  7. Current Amps: 64
  8. Color Code: 5 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 2/5 SO cord, 2/5 rubber wire, 2 gauge 5C wire flexible cord, 2 AWG 5C oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 2 AWG 5C SOOW Cable









SOOW Shielded – 600V UL/CSA [Wire & Cable Sizes, Specs, Amps, Pricing]

1XTech® 18 AWG through 12 AWG Shielded SOOW Cable Portable Cord Electrical Wire & Cable Products Specs, Amps, Price per foot, and other pertinent data are listed below for our most popular sizes and conductor counts. Keep in mind, in addition to these sizes, we can manufacture custom sizes, colors, jackets, armor, shielding on any cable of your choice. Call now for pricing: 1-888-651-9990

18/2 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.38 inches
  6. Weight: 0.08 lbs per ft
  7. Color Code: 2 Conductors – 1. Black, 2. White,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 18/2 Shielded SO cord,18/2 Shielded rubber wire, 18 gauge 2C shielded wire flexible cord, 18 AWG 2C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 18 AWG 2C shielded SOOW Cable









18/3 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.395 inches
  6. Weight: 0.102 lbs per ft
  7. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 18/3 Shielded SO cord, 18/3 Shielded rubber wire, 18 gauge 3C shielded wire flexible cord, 18 AWG 3C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 18 AWG 3C shielded SOOW Cable









18/4 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.420 inches
  6. Weight: 0.17 lbs per ft
  7. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 18/4 Shielded SO cord, 18/4 Shielded rubber wire, 18 gauge 4C shielded wire flexible cord, 18 AWG 4C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 18 AWG 4C shielded SOOW Cable









18/6 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 6
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.520 inches
  6. Weight: 0.17 lbs per ft
  7. Color Code: 6 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 18/6 Shielded SO cord, 18/6 Shielded rubber wire, 18 gauge 6C shielded wire flexible cord, 18 AWG 6C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 18 AWG 6C shielded SOOW Cable









18/8 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 8
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.560 inches
  6. Weight: 0.20 lbs per ft
  7. Color Code: 8 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 18/8 Shielded SO cord, 18/8 Shielded rubber wire, 18 gauge 8C shielded wire flexible cord, 18 AWG 8C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 18 AWG 8C shielded SOOW Cable









18/10 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 18 AWG
  2. Number of Conductors: 10
  3. Insulation Thickness: 0.030 inches
  4. Outside Diameter: 0.620 inches
  5. Weight: 0.25 lbs per ft
  6. Color Code: 10 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe,
  7. Standard Jacket Colors: Black, Yellow, or White
  8. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  9. Custom Service Cord Striping / Printing Available: Yes
  10. Also Known As: 18/10 Shielded SO cord, 18/10 Shielded rubber wire, 18 gauge 10C shielded wire flexible cord, 18 AWG 10C shielded oil-resistant outdoor cable 600V
  11. Pricing:  My Price / Cost per foot to buy 18 AWG 10C shielded SOOW Cable









16/2 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 2
  3. Conductor Strand: 16/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.398 inches
  6. Weight: 0.097 lbs per ft
  7. Color Code: 2 Conductors – 1. Black, 2. White,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 16/2 Shielded SO cord, 16/2 Shielded rubber wire, 16 gauge 2C shielded wire flexible cord, 16 AWG 2C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 16 AWG 2C shielded SOOW Cable









16/3 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 26
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.417 inches
  6. Weight: 0.124 lbs per ft
  7. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 16/3 Shielded SO cord, 16/3 Shielded rubber wire, 16 gauge 3C shielded wire flexible cord, 16 AWG 3C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 16 AWG 3C shielded SOOW Cable









16/4 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.450 inches
  6. Weight: 0.165 lbs per ft
  7. Amps per Conductor: 8 amps
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 16/4 Shielded SO cord, 16/4 Shielded rubber wire, 16 gauge 4C shielded wire flexible cord, 16 AWG 4C shielded oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 16 AWG 4C shielded SOOW Cable









16/8 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 8
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.590 inches
  6. Color Code: 8 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe,
  7. Standard Jacket Colors: Black, Yellow, or White
  8. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  9. Custom Service Cord Striping / Printing Available: Yes
  10. Also Known As: 16/8 Shielded SO cord, 16/8 Shielded rubber wire, 16 gauge 8C shielded wire flexible cord, 16 AWG 8C shielded oil-resistant outdoor cable 600V
  11. Pricing:  My Price / Cost per foot to buy 16 AWG 8C shielded SOOW Cable









16/12 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 16 AWG
  2. Number of Conductors: 12
  3. Conductor Strand: 26/30
  4. Insulation Thickness: 0.030 inches
  5. Outside Diameter: 0.720 inches
  6. Weight: 0.349 lbs per ft
  7. Color Code: 12 Conductors – 1. Black, 2. White, 3. Red, 4. Green, 5. Orange, 6. Blue, 7. White + Black Stripe, 8. Red + Black Stripe, 9. Green + Black Stripe, 10. Orange + Black stripe, 11. Blue + Black stripe, 12. Black + White stripe,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 16/12 Shielded SO cord, 16/12 Shielded rubber wire, 16 gauge 12C shielded wire flexible cord, 16 AWG 12C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 16 AWG 12C shielded SOOW Cable









14/3 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 41
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.56 inches
  6. Weight: 0.212 lbs per ft
  7. Color Code: 4 Conductors – 1. Black, 2. White,  3. Green,
  8. Standard Jacket Colors: Black, Yellow, or White
  9. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  10. Custom Service Cord Striping / Printing Available: Yes
  11. Also Known As: 14/3 Shielded SO cord, 14/3 Shielded rubber wire, 14 gauge 3C shielded wire flexible cord, 14 AWG 3C shielded oil-resistant outdoor cable 600V
  12. Pricing:  My Price / Cost per foot to buy 14 AWG 3C shielded SOOW Cable









14/4 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 14 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 41
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.59 inches
  6. Weight: 0.257 lbs per ft
  7. Amps per Conductor: 8 amps
  8. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green
  9. Standard Jacket Colors: Black, Yellow, or White
  10. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  11. Custom Service Cord Striping / Printing Available: Yes
  12. Also Known As: 14/4 Shielded SO cord, 14/4 Shielded rubber wire, 14 gauge 3C shielded wire flexible cord, 14 AWG 4C shielded oil-resistant outdoor cable 600V
  13. Pricing:  My Price / Cost per foot to buy 14 AWG 4C shielded SOOW Cable









12/3 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 3
  3. Conductor Strand: 65
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.63 inches
  6. Color Code: 3 Conductors – 1. Black, 2. White,  3. Green,
  7. Standard Jacket Colors: Black, Yellow, or White
  8. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  9. Custom Service Cord Striping / Printing Available: Yes
  10. Also Known As: 12/3 Shielded SO cord, 12/3 Shielded rubber wire, 12 gauge 3C shielded wire flexible cord, 12 AWG 3C shielded oil-resistant outdoor cable 600V
  11. Pricing:  My Price / Cost per foot to buy 12 AWG 3C shielded SOOW Cable









12/4 Shielded SOOW Cable Portable Cord 600V UL/CSA

  1. Size: 12 AWG
  2. Number of Conductors: 4
  3. Conductor Strand: 65
  4. Insulation Thickness: 0.045 inches
  5. Outside Diameter: 0.68 inches
  6. Color Code: 4 Conductors – 1. Black, 2. White, 3. Red, 4. Green,
  7. Standard Jacket Colors: Black, Yellow, or White
  8. Custom Jacket Colors: Blue, Red, Green, Brown, Silver, Purple, Gray, Orange, Pink.
  9. Custom Service Cord Striping / Printing Available: Yes
  10. Also Known As: 12/4 Shielded SO cord, 12/4 Shielded rubber wire, 12 gauge 4C shielded wire flexible cord, 12 AWG 4C shielded oil-resistant outdoor cable 600V
  11. Pricing:  My Price / Cost per foot to buy 12 AWG 4C shielded SOOW Cable









Equivalents to Belden SOOW Cable Equals

1X Technologies provides you with equivalents to Belden SOOW Cable in all the sizes you need. Quality equals to Belden’s flexible and durable Cable Portable Cordage designs have been relied upon by engineers for decades and we provide you with exact equals to these products that are made in the USA. We manufacture SO Cords with rubber and specialty plastic jacketing options and finely stranded conductors so you can be certain your cabling will support an installed service life that is second to none in temporary applications from 1XTech.

https://youtu.be/V6-LxvGLeWo



Popular SOOW Sizes for our Belden Equivalent Cable Portable Cords

Belden 9427 Equivalent SOOW Cable

Cable Portable Cordage, 16 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO
  • Cable Portable Cordage, 16 Conductor 16AWG (65×34) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO

Belden 9420 Equivalent SOOW Cable

Cable Portable Cordage, 5 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO
  • Cable Portable Cordage, 5 Conductor 16AWG (65×34) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO

Belden 19217 Equivalent SOOW Cable

Cable Portable Cordage, 4 C #14 Str BC, EPDM Ins, CPE Jkt, UL Type SO
  • Cable Portable Cordage, 4 Conductor 14AWG (41×30) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO













SOOW Cable Ampacity and Detailed Specs 18 AWG – 2 AWG



18 AWG SOOW Cable Specifications

1XT Part NumberAWG SizeNo. of Cond.Conductor StrandingNom. Insul. Thick. (in)Jacket ThickNom. O.D. of Cable (in)AmpsApprox LBS/MFT
SOOW 18/218216/300.0300.0600.3451070
SOOW 18/318316/300.0300.0600.3651080
SOOW 18/418416/300.0300.0600.390795
SOOW 18/518516/300.0300.0800.4705.6132
SOOW 18/618616/300.0300.0800.4905.6142
SOOW 18/718716/300.0300.0800.5204.9156
SOOW 18/818816/300.0300.0800.5304.9173
SOOW 18/918916/300.0300.0800.5554.9189
SOOW 18/10181016/300.0300.0800.5753.5205
SOOW 18/12181216/300.0300.0800.6003.5230
SOOW 18/14181416/300.0300.0800.6403.5262
SOOW 18/16181616/300.0300.0950.7003.5307
SOOW 18/20182016/300.0300.0950.7503.5366
SOOW 18/22182216/300.0300.0950.8053.1400
SOOW 18/24182416/300.0300.0950.8053.1426
SOOW 18/30183016/300.0300.0950.8803.1505
SOOW 18/50185016/300.0300.1101.1002.5803





16 AWG SOOW Cable Specifications

1XT Part NumberAWG SizeNo. of Cond.Conductor StrandingNom. Insul. Thick. (in)Jacket ThickNom. O.D. of Cable (in)AmpsApprox LBS/MFT
SOOW 16/216226/300.0300.0600.3701380
SOOW 16/316326/300.0300.0600.3901395
SOOW 16/416426/300.0300.0600.42010115
SOOW 16/516526/300.0300.0800.5008.0157
SOOW 16/616626/300.0300.0800.5308.0178
SOOW 16/716726/300.0300.0800.5307.0189
SOOW 16/816826/300.0300.0800.5657.0214
SOOW 16/916926/300.0300.0800.6007.0242
SOOW 16/10161026/300.0300.0800.6155.0252
SOOW 16/12161226/300.0300.0950.7005.0317
SOOW 16/14161426/300.0300.0950.7255.0363
SOOW 16/16161626/300.0300.0950.7605.0390
SOOW 16/18161826/300.0300.0950.7955.0429
SOOW 16/20162026/300.0300.0950.8255.0469
SOOW 16/24162426/300.0300.0950.8754.5543
SOOW 16/30163026/300.0300.1100.9854.5681
SOOW 16/37163726/300.0300.1101.0654.0798
SOOW 16/39163926/300.0300.1101.0804.0838
SOOW 16/40164026/300.0300.1101.1004.0850
SOOW 16/44164426/300.0300.1101.1804.0959
SOOW 16/60166026/300.0300.1251.3353.51248









14 AWG SOOW Cable Specifications

1XT Part NumberAWG SizeNo. of Cond.Conductor StrandingNom. Insul. Thick. (in)Jacket ThickNom. O.D. of Cable (in)AmpsApprox LBS/MFT
SOOW 14/214241/300.0450.0750.51018135
SOOW 14/314341/300.0450.0750.53518170
SOOW 14/414441/300.0450.0750.57515210
SOOW 14/514541/300.0450.0950.66812.0299
SOOW 14/614641/300.0450.0950.68512.0357
SOOW 14/714741/300.0450.0950.68510.5364
SOOW 14/814841/300.0450.0950.73510.5435
SOOW 14/10141041/300.0450.0950.8157.5531
SOOW 14/12141241/300.0450.0950.8557.5609
SOOW 14/14141441/300.0450.0950.9157.5678
SOOW 14/16141641/300.0450.1100.9957.5806
SOOW 14/20142041/300.0450.1101.0707.5955
SOOW 14/24142441/300.0450.1101.1606.81130
SOOW 14/36143641/300.0450.1251.4006.01653
SOOW 14/37143741/300.0450.1251.4006.01681
SOOW 14/40144041/300.0450.1251.4506.01787
SOOW 14/50145041/300.0450.1251.5905.01992







12 AWG SOOW Cable Specifications

1XT Part NumberAWG SizeNo. of Cond.Conductor StrandingNom. Insul. Thick. (in)Jacket ThickNom. O.D. of Cable (in)AmpsApprox LBS/MFT
SOOW 12/212265/300.0450.0900.57025195
SOOW 12/312365/300.0450.0900.59525225
SOOW 12/412465/300.0450.0900.65020270
SOOW 12/512565/300.0450.0950.70516.0343
SOOW 12/612665/300.0450.0950.74516.0376
SOOW 12/712765/300.0450.0950.74514.0405
SOOW 12/812865/300.0450.0950.80014.0457
SOOW 12/912965/300.0450.0950.85514.0510
SOOW 12/10121065/300.0450.0950.89010.0558
SOOW 12/12121265/300.0450.1100.96010.0662
SOOW 12/14121465/300.0450.1101.0310.0668
SOOW 12/16121665/300.0450.1101.08510.0843
SOOW 12/20122065/300.0450.1101.17010.01015
SOOW 12/24122465/300.0450.1251.3009.01226
SOOW 12/30123065/300.0450.1251.3959.01470
SOOW 12/37123765/300.0450.1251.5358.01749
SOOW 12/40124065/300.0450.1251.5808.01872
SOOW 12/50125065/300.0450.1401.7607.02269







10 AWG SOOW Cable Specifications

1XT Part NumberAWG SizeNo. of Cond.Conductor StrandingNom. Insul. Thick. (in)Jacket ThickNom. O.D. of Cable (in)AmpsApprox LBS/MFT
SOOW 10/2102104/300.0450.0900.62030250
SOOW 10/3103104/300.0450.0900.66030290
SOOW 10/4104104/300.0450.0900.71525355
SOOW 10/5105104/300.0450.0950.77020.0425
SOOW 10/6106104/300.0450.0950.81520.0468
SOOW 10/7107104/300.0450.0950.81517.5511
SOOW 10/8108104/300.0450.0950.88017.5600
SOOW 10/9109104/300.0450.1100.96517.5667
SOOW 10/101010104/300.0450.1101.01512.5746
SOOW 10/121012104/300.0450.1101.06012.5876
SOOW 10/161016104/300.0450.1101.19512.51110
SOOW 10/201020104/300.0450.1251.32512.51388
SOOW 10/241024104/300.0450.1251.44011.251636
SOOW 10/301030104/300.0450.1251.58011.251973













8 AWG through 2 AWG SOOW Cable Specifications

1XT Part NumberAWG SizeNo. of Cond.Conductor StrandingNom. Insul. Thick. (in)Jacket ThickNom. O.D. of Cable (in)AmpsApprox LBS/MFT
SOOW 8/28265/260.0500.0900.66040290
SOOW 8/38365/260.0500.0900.72040365
SOOW 8/48465/260.0500.0900.78035500
SOOW 8/58565/260.0500.0900.86028545
SOOW 6/262101/260.0600.0900.80555389
SOOW 6/363101/260.0500.1250.80055515
SOOW 6/464101/260.0500.1400.84545620
SOOW 6/565101/260.0500.1400.94536750
SOOW 4/343119/250.0500.1400.94070670
SOOW 4/444119/250.0500.1551.01060835
SOOW 4/545119/250.0500.1551.135481065
SOOW 2/323133/.02110.0550.1551.090951030
SOOW 2/424133/.02110.0550.1701.170801285
SOOW 2/525133/.02110.0550.1701.435641620







SOOW Extension cord

SOOW Extension cords are in stock at 1X Technologies. We carry most of the popular sizes you need. Additionally, we can manufacture custom extension cords for you quickly.

We stock extension cords in many sizes, colors, and with connectors of all types.





SOOW Cable in Coil, Bulk SOOW, Clearance SOOW
