1XTech® Stage Lighting Cable [SC Lighting Cable Manufacturers, Specs, Price, Amps]

1X Technologies Stage Lighting Cables are approved by the Motion Picture Association and are currently in use throughout the world in film production. Stage Lighting Cable types are also known as Theatrical Lighting Cable, Stage Wire, Stage Lighting Wire, SC Wire, SC Cable,  SC Lighting Cable, and Stage Lighting Safety Cables.  1XTech® Stage Lighting Cable is manufactured to the highest quality standards in the USA. 1XTech® Type SC (Service Cable) / PPC (Portable Power Cable) Stage Lighting Cable is classified as an industrial-grade single conductor portable cord and is extremely flexible with class K flex stranding.  1XTech® Stage Lighting Cable is produced to provide you with tremendous durability and the highest level of safety in your industrial entertainment production project management.

1X Technologies manufactures and supplies SC Lighting Cables that are oil and Water Resistant, meeting NEC requirements for lighting for performance events such as Symphonies, Orchestras, Film Production, Concert Venues, Carnivals, Indoor and Outdoor Music Festivals, Conventions, Television Production, University Event Centers, etc.

We are preferred suppliers of SC Lighting Cable / Stage Lighting Cable for companies such as Walt Disney Engineering / WED Show Lighting, Universal Studios, Fox, ABC, CBS, Clearchannel, Facebook, and more. You may learn more about our SC Cable below or request a price quote for immediate help with your Stage Lighting Cable.



My Stage Lighting Cable Price ✅

Please fill out the secure form below and be sure to include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond quickly with your Stage Lighting Cable Price/Pricing/Cost per foot.



If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.





1XTech® Stage Lighting Cable Features:

  • For use in accordance with NEC Articles 520, 525, and 530, indoor and outdoor locations
  • Flame test: meets VW-1, MSHA
  • Excellent flexibility, resistance to oil, solvents, ozone, aging, and abrasion, making for lower-cost cable management.
  • Suitable for continuous submersion in water
  • Temperature range: -35°C to +105°C



SC Lighting Cable (Theatrical Lighting Cable) Industry Approvals:

  • ASTM B-174
  • UL 1680, 600V, Oil Resistant
  • CSA C22.2 No. 96, PPC, 600V
  • Flame Tests: CSA FT-5
  • CEC Part 1, Table II
  • RoHS
  • EPA 40 CFR, Part 26, Subpart C, heavy metals per Table 1, TCLP method



1XTech® Stage Lighting Cable Construction Parameters:

CONDUCTOR: 8 AWG – 4/0 AWG  Flexible strand bare copper, ASTM B 172 class K

SEPARATOR: Polyester tape over conductor

INSULATION: EPDM

COLOR CODE: Black

JACKET: CPE

Color: Black  (All Colors available, choose from Pantone® Colorwheel)

PRINT LEGEND EXAMPLE:  XX AWG (XX mm2) TYPE SC (UL) 600V -50C TO 105C DRY 60C WET OIL RES 60C —  CSA TYPE PPC 600V -50C TO 105C FT-5 SUN RES

PHYSICAL PROPERTIES:

TEMPERATURE RANGE:-50°C to 105°C Dry, 60C Wet

ELECTRICAL PROPERTIES:

VOLTAGE RATING: 600V RMS, Max

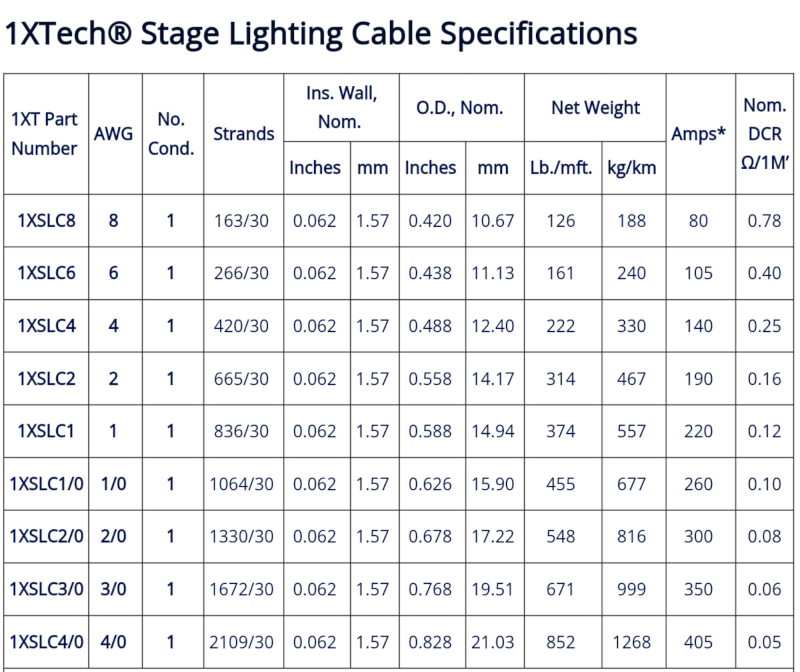

1XTech® SC- Stage Lighting / Theatrical Power Cable Specifications (Amps / Sizes) 1XTech Stage Lighting Cable Specifications , Manufacturers Data Specs Amps Sizes AWG

Note: All dimensions & weights are nominal & subject to industry standards and tolerances unless otherwise noted.  *

Ampacitybased on NEC Table 310.17 (90°C) & CEC Table 12A single conductor ≤ 2 kV column.



This product complies with European Directive 2002/95/EC (RoHS)  The customer will accept all factory lengths and +/- 10 percent of the total order requested.  The information presented here is, to the best of our knowledge, true and accurate. Since conditions of use are beyond 1XTech’s control all product data presented is for informational purposes only and does not create a binding obligation or liability on 1XTech or confer any rights on any customer. The sale of products(s) is conditioned upon acceptance of a purchase order subject to 1XTech disclaims all liability in connection with the use of the information contained herein or otherwise.





1X Technologies Stage Lighting Cable Types / Terminology

  • Stage and Lighting Cable
  • Theatrical Lighting Cable,
  • Theatrical Lighting Extension Cable,
  • Stage Wire,
  • Stage Lighting Wire,
  • SC Wire,
  • SC Cable,
  • SC Lighting Cable

In addition to this, 1X Technologies also supplies our industrial entertainment customers with other Portable Power Cable products such as SOOW, SJOOW, SEOOW, SJEOOW in many colors and configurations.  1X Technologies also supplies the finest sound cables for your project offering high-quality equivalents to Belden, and some very specialized shielded microphone cables that can’t be beaten on sound quality. We have many types of stage lighting cable that you can choose from so please reach out to us today for help ordering your products.





1XTECH® STAGE LIGHTING CABLE SIZES

Sizes range from 8 AWG to 4/0 AWG – Single Conductor, and smaller or larger custom sizes may be manufactured up to 4000 KCMIL per customer request.



8 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 8 AWG
  • Number of Strands / Stranding: 163/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 8 AWG Stage Lighting Cable Amperage: 80 Amps
  • Weight per 1000 Feet:  126 lbs.
  • 8 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .420 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 8 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



6 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 6 AWG
  • Number of Strands / Stranding: 266/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 6 AWG Stage Lighting Cable Amperage: 105 Amps
  • Weight per 1000 Feet:  161 lbs.
  • 6 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .438 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 6 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



4 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 4 AWG
  • Number of Strands / Stranding: 420/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 4 AWG Stage Lighting Cable Amperage: 140 Amps
  • Weight per 1000 Feet:  222 lbs.
  • 4 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .488 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 4 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



2 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 2 AWG
  • Number of Strands / Stranding: 665/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 2 AWG Stage Lighting Cable Amperage: 190 Amps
  • Weight per 1000 Feet:  314 lbs.
  • 2 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .558 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 2 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



1 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 1 AWG
  • Number of Strands / Stranding: 836/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 1 AWG Stage Lighting Cable Amperage: 220 Amps
  • Weight per 1000 Feet:  374 lbs.
  • 1 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .588 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 1 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



1/0 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 1/0 AWG
  • Number of Strands / Stranding: 1064/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 1/0 AWG Stage Lighting Cable Amperage: 260 Amps
  • Weight per 1000 Feet:  455 lbs.
  • 1/0 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .626 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 1/0 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



2/0 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 2/0 AWG
  • Number of Strands / Stranding: 1330/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 2/0 AWG Stage Lighting Cable Amperage: 300 Amps
  • Weight per 1000 Feet:  538 lbs.
  • 2/0 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .678 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 2/0 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



3/0 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 3/0 AWG
  • Number of Strands / Stranding: 1672/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 3/0 AWG Stage Lighting Cable Amperage: 350 Amps
  • Weight per 1000 Feet:  671 lbs.
  • 3/0 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .768 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 3/0 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.



4/0 AWG SC – Stage Lighting Cable / Theatrical Lighting Wire & Cable

  • Stage Lighting Cable Size: 4/0 AWG
  • Number of Strands / Stranding: 2109/30
  • Insulation Wall: .062 In.
  • Voltage: 600 Volt
  • 4/0 AWG Stage Lighting Cable Amperage: 405 Amps
  • Weight per 1000 Feet:  852 lbs.
  • 4/0 AWG Theatrical Lighting Cable Dimensions, Outside Diameter  O.D. — .828 In.
  • RoHS: Yes
  • REACH: Yes
  • MADE IN THE USA: Yes
  • 4/0 AWG SC Lighting Cable Temperature Rating:  75°C Wet/Dry
  • UL / CSA: Yes
  • Approved by the Motion Picture Association (MPA): Yes, 1XTech® Stage Lighting theatrical cables are currently in use throughout the world in film production.
