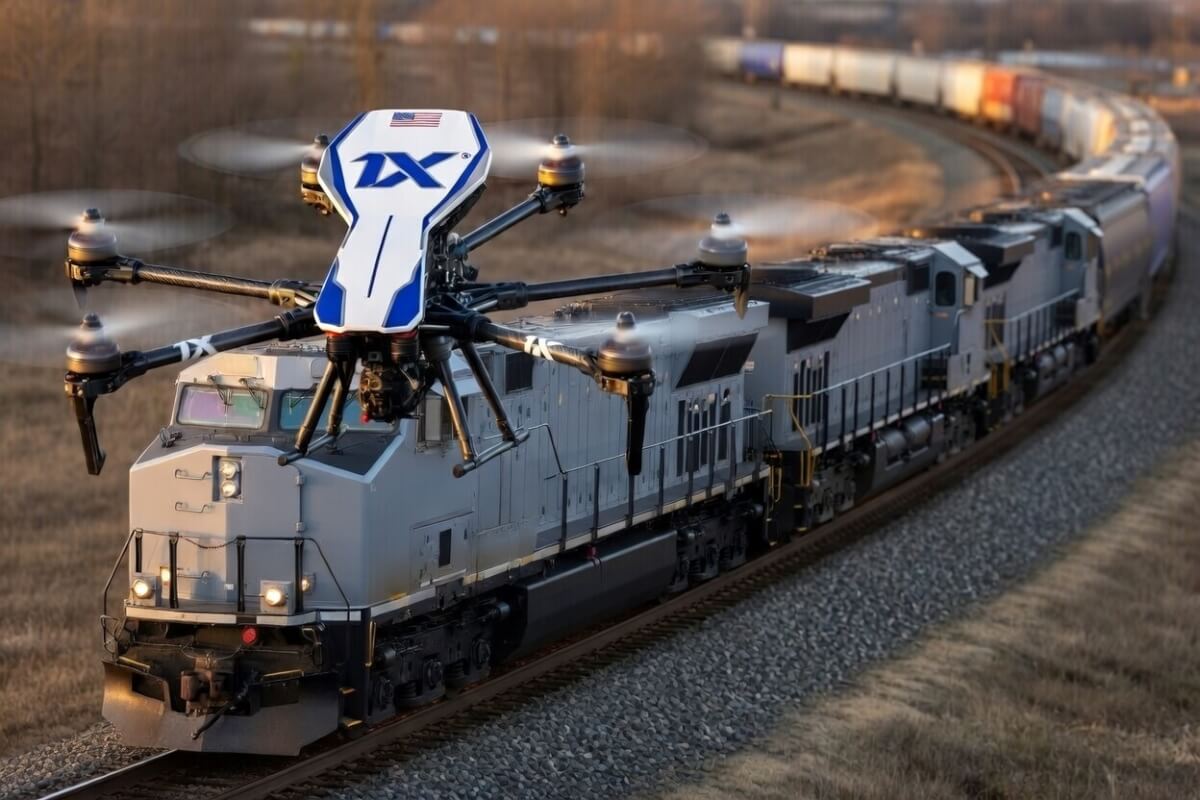

1X LightningVortex Hybrid Rail Inspection UAV /  UAS

1X LV ⚡🌪️ – Ultra High Endurance Rail Inspection Platform

The 1X LightningVortex (1X LV ⚡🌪️) is a fully integrated robotic unmanned aerial UAV / UAS system purpose-built for demanding rail infrastructure inspection. At its core is the 1X Nervous System™ — our proprietary electronics hardware, cabling, harnesses, connectors, and cable-management components that form the complete internal architecture of advanced robotics. These specialized systems are engineered using the same high-reliability design principles and supply chain employed in our industrial robotic arms, quadrupeds, and automation platforms, and offer our Rail & Transit customers an excellent choice for performing long-range line inspections.

This is not consumer drone robotics hardware. The 1X Nervous System delivers unmatched vibration resistance, EMI shielding, and signal integrity in active rail corridors, enabling reliable operations within feet of live 25 kV catenary and high-current signal bungalows without datalink dropout.

Optimized Target Applications & Procurement Options

• Long-Range Rail Corridor Mapping: High-density LiDAR and orthomosaics for full-network track monitoring.
• Continuous Linear Asset Monitoring: Right-of-way clearance checks, vegetation encroachment, and structural health tracking.
• BVLOS Network Operations: Seamless data capture over a 50+ mile radius without requiring ground-crew relocation.
• Heavy-Duty Rail Infrastructure Components: High-flex DLO (Diesel Locomotive) cables built to withstand severe environmental stress, high vibrations, and heavy power loads in rail yards and locomotives.

Model Range Options (U.S. Measurements)

Mission / Ferry Range (cruise speed): Up to 147 miles (Assumes pre-planned waypoint flight; datalink LOS ranges specified in table)

Key 1X LV ⚡🌪️ Advantages

• Reduce Track Occupancy & Hi-Rail Costs — Achieve up to 147 miles of linear corridor scan per launch cycle. Eliminate the need for slow-moving hi-rail vehicle escorts and reduce “blue flag” protection windows by up to 70%.
• Ultra High Endurance — Achieves up to 5.5 hours of verifiable flight time without payload.
• Heavy Payload Capacity — Supports 24 lb (11 kg) on the Pro model and 18.5 lb (8.4 kg) on the Standard model, enabling full suites of EO-IR gimbals, LiDAR rail scanners, ultrasonic flaw detectors, magnetometry, and thermal catenary inspection systems.
• 1X Proprietary Nervous System™ — Features lower-weight, torsion-resistant dress packs, energy chains, high-flex harnesses, and EMI-shielded connectors. These components reduce overall system weight while eliminating connector back-out caused by constant track vibration.
• Extreme Rail Environment Operation — Designed for reliable performance from 15 °F (-10 °C) to 113 °F (45 °C) standard, with an optional water-cooled configuration rated up to 122 °F (50 °C) and high-altitude capability to 14,300 ft density altitude.
• Rail-Optimized Modular Payload Bay — Accommodates plug-and-play integration with industry-standard sensors including Ensco-compatible track geometry data formats, Riegl LiDAR scanners, and high-res thermal imaging for overhead catenary wear detection.
• Hybrid Power Redundancy with 1X Architecture — Features a fully redundant power system with extended battery reserve time, using 1X harnesses and power-distribution cabling to eliminate single-point failures.

The 1X Nervous System – Why It Matters for Rail

A drone is a complete robotic machine. The 1X LV ⚡🌪️ is wired end-to-end with 1X electronics hardware and cabling systems — the same “nervous system” components that power our full line of industrial robotics. These specialized cables, wire harnesses, connectors, dress packs, energy chains, and signal-transmission solutions allow the platform to maintain rock-solid performance over ultra-long flights in harsh rail conditions (constant vibration, electromagnetic interference from tracks and signaling, and extreme temperature swings).

IEEE Classification Note: Drones (Unmanned Aerial Vehicles or UAS) are classified as complex electro-mechanical systems under IEEE standards. The 1X LV ⚡🌪️ meets the rigorous demands of IEEE 1937.1-2020 interface standards and is designed for electromagnetic compatibility equivalent to MIL-STD-461G RS103 for operation in high-EMI rail corridors.

Usability & Rail Robotics Operations

Safety & Security (Rail-Critical)

• Propulsion Redundancy — Hexacopter configuration allows controlled flight and safe landing on 5 of 6 motors. In the event of primary generator failure, an integrated 4-6 minute LiPo reserve provides Return-to-Launch (RTL) capability.
• Advanced Encryption & Anti-Jamming — AES256 datalink encryption standard; optional GNSS/radio anti-jamming and full GPS-denied navigation (essential near signal bungalows and in tunnels).
• Fully U.S. Manufactured & NDAA Compliant — All firmware compiled in-house; hardware meets strict U.S. supply chain standards.
• 1X Reliability Standard — Every cable, connector, harness, sheath, duct, reel, and fitting is 1X-designed and tested to robotics-grade specifications — far exceeding typical UAS wiring MTBF.

Certifications & Regulatory Compliance

• Electrical & Harness Manufacturing: Wiring, cables, and proprietary harness assemblies are compliant with IPC/WHMA-A-620 Class 3 (High Performance/Harsh Environment Electronic Products). Internal wire, electronics, and power distribution systems are UL / CSA / CE listed.
• Aviation & Operations: FAA Remote ID Compliant. Platform communication and hardware redundancy systems are designed to support FAA Part 107 BVLOS (Beyond Visual Line of Sight) operational waivers.
• Quality & Environmental: ISO 9001:2015 certified supply chain and manufacturing processes. Platform carries a verified IP65 ingress protection rating against heavy dust, metallic particulate, and direct rain.
• Military-Grade Resilience: EMI/EMC testing equivalent to MIL-STD-461G RS103. Vibration and shock resilience mapped to MIL-STD-810H standards for transport and rail-adjacent deployment.

Detailed Specifications – 1X LV ⚡🌪️ Series

Air Vehicle Performance (ISA Sea Level Conditions)

Size & Weight

• Tip-to-Tip Length (Arms Removed): 2 ft 6.6 in
• Ready-to-Fly Dimensions: 6.5 ft × 6.25 ft
• Height (Minimum): 1.2 ft
• Max Takeoff Weight (MTOW): 51 lb (Standard) / 57 lb (Pro)

1X Power & Nervous System Architecture

• Power Source: Advanced Hybrid Gasoline-Electric Propulsion with 1X-Integrated Cabling
• Fuel Requirement: Unleaded 91 Octane (R+M/2) or above
• Electrical Conversion Efficiency: >95% (Generator to Motor Bus)
• Redundant Bus / Reserve: Dual 10S LiPo Hot-Swap Buffer (4-6 min emergency RTL)
• Battery Type: Lithium Polymer 10S

Command, Control & Communications (C3)

• Ground Control Software: Proprietary with full 1X telemetry integration
• Autopilot Architecture: Advanced platform fully wired with 1X harnesses and signal cables
• Radio Frequency Options: 400 MHz (NLOS) – 6 GHz (High Bandwidth)
• Encryption: AES256 standard
• Anti-Jamming / GPS-Denied: Rail-specific options available (Visual-Inertial Odometry)

Beyond Standard Platforms: Custom Industrial Inspection Solutions

While the 1X LightningVortex represents our flagship platform purpose-built for demanding rail corridor inspection, 1X Technologies also delivers custom-engineered industrial inspection drones and UAV systems tailored to specific operational requirements. Whether you need modifications to the LightningVortex platform or a completely new UAV architecture for rail, pipeline, power line, or industrial facility inspection, our team can design and build solutions around your payload, endurance, and environmental needs.

Beyond full vehicle development, 1X serves as a strategic component and subsystem supplier to other UAV and drone manufacturers. We provide high-reliability, vibration-resistant cabling, custom wire harnesses, energy chains, connectors, and complete robotic “nervous system” architectures engineered for the harsh conditions of industrial and rail environments. These components are built to the same robotics-grade standards used in our own platforms, with an emphasis on long-term durability under constant vibration, electromagnetic interference, and demanding duty cycles.

This dual capability — designing complete custom inspection UAVs while also supplying critical subsystems to other manufacturers — allows 1X to function as both a system integrator and a high-performance component partner across the industrial inspection sector.

Government & Defense Heritage

1X Technologies brings significant experience as a government contractor, with a track record supporting U.S. Army and Navy programs as well as work with major undersea and infrastructure contractors. Our deep roots in high-reliability power distribution, cabling, and energy architectures for demanding environments give us a unique advantage when developing both complete inspection platforms and the critical internal components that ensure long-term performance.

Partner With 1X

Whether you are looking for a purpose-built rail inspection UAV, a custom-configured industrial inspection drone for other applications, or high-performance cabling and harness solutions for your own drone platforms, 1X Technologies offers the engineering depth and manufacturing capability to support your program.

To discuss custom UAV development, component supply opportunities, or to request a quote, please contact our robotics engineering team directly:

Email: robotics.engineering@1xtechnologies.com Phone: 1-888-651-9990

We welcome inquiries from rail operators, industrial asset owners, system integrators, and fellow drone manufacturers seeking reliable inspection solutions or high-quality components for their own platforms.
