1X Technologies is the foremost manufacturer and supplier of electrical Submersible Pump Cable in the United States.

Alongside our completely customized line of Submarine Power Cables for deep river and ocean installations, we sell Sump-Pump Cables, Wires, and Cords for underwater electric well pump motors of all sizes. We have all the standard pump cable sizes and configurations in stock, but our specialty is making life easy for our customers when they have a head-scratcher of a Pump Wire problem. We produce pump cables with unlimited conductor counts, shielding, armor, and can even produce pump cables in specialty conduit for you.

There is no other supplier of submersible pump cable that will offer you the selection, capabilities, and satisfaction after buying your submersible cable wire from 1X Technologies. Pump Wire, Pump Cable, to the deepest depths on earth, and MADE IN THE USA! Because You Require Quality, Quickly!

Below you will find the most comprehensive Sub-Pump Cable reference in existence. We will thoroughly cover many Submersible Pump Cable topics that are asked every day such as:

• For Sale! Submersible pump cable price/pricing/cost per foot to buy
• What is Submersible Pump Cable?
• Specs – submersible pump cable specifications including Types / Ampacity / Weight / Outside Diameter / Assembly / Color Code
• Charts – submersible pump cable selection chart including wire sizing for pump motor types
• Wire & Cable Sizes – submersible pump cable sizing (AWG / MCM / KCMIL / MM2)
• How to buy locally? Re-Sellers, Distributors, and Wholesale Suppliers of 1X Technologies Submersible Pump Cables such as Anixter, Graybar, Lowes, Home Depot, and more…
• All about Armored submersible pump cable
• Multi-Conductor Sub-Pump Cable Uses / Types / References
• Why Use a Flat Sub-Pump Cable? Why use a round pump cable?
• Are there Aluminum Pump Cables available to buy for deep wells?

My Quick Submersible Pump Cable Price ✅

Include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond with your Submersible Pump Cable sale pricing, so you can buy it today, quick and easy.

If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.

What is a submersible pump cable?

Just as the name sounds, a submersible pump cable is an electrical conductor that is specifically made to bring power to your submersible pump. A submersible pump (or sub pump / Sump Pump, electric submersible pump (ESP)) is a device that has a hermetically sealed motor close-coupled to the pump body. The whole assembly is submerged in the fluid to be pumped. The main advantage of this type of pump is that it prevents pump cavitation, a problem associated with a high elevation difference between the pump and the fluid surface. Submersible pumps push fluid to the surface, rather than jet pumps, which create a vacuum and rely upon atmospheric pressure. Submersibles use pressurized fluid from the surface to drive a hydraulic motor downhole, rather than an electric motor and are used in heavy oil applications with heated water as the motive fluid. A Sub Pump cable can be a multitude of sizes, most commonly 16 AWG through 6 AWG, but can also be much bigger for larger loads. We manufacture your submersible pump cables in many different construction and types, including multi-conductor flat, round, shielded, non-shielded, armored, non-armored, extra flexible, and always certified to be submerged in water!

Submersible pump cable specifications including Types / Ampacity / Weight / Outside Diameter / Assembly / Color Code

Twisted Submersible Pump Cable Sizes

Stranded Copper Conductors EPR, XLP, or PVC, Jacketed 600V

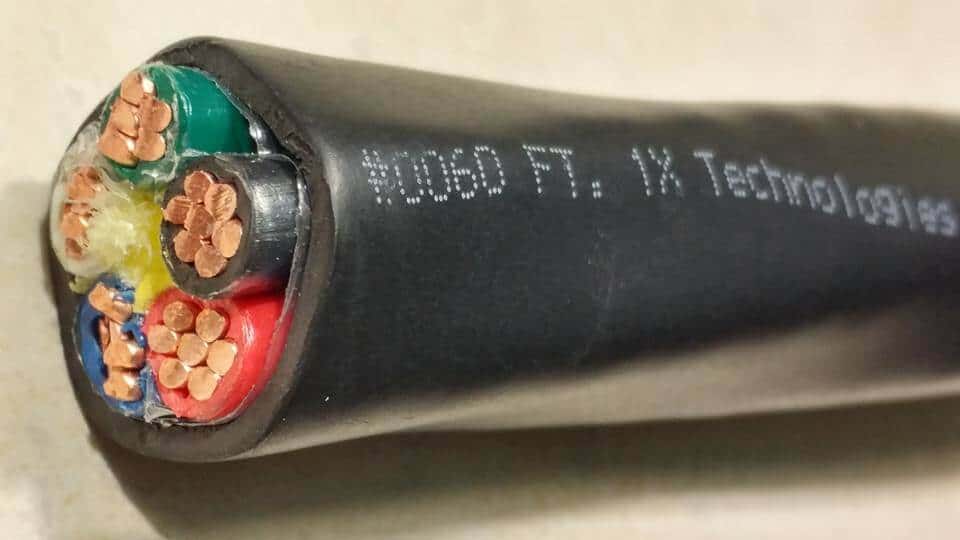

• Stranded bare copper conductors with PVC or XLPE insulation 3 or 4 twisted conductors (Plastic Outer Sheath, also available with CPE and XLPO sheath)
• Typical sizes range from 14 AWG 3C up to 4/0 AWG 5C.  (MCM/KCMIL sizes available for larger loads)
• Ampacity ranges from 25 Amps to 260 Amps
• Outside Diameter ranges from .42 to 1.73 inches
• Color Code: Typically Black and Numbered, but may be manufactured with any desired conductor colors

Additionally, we can often combine these armor types to create a substantially more rugged armored submersible pump cable design. In fact, a Bronze Brad Armor with a submersible sheath, within a galvanized steel interlocking armor is very similar to our Submarine Cable for inland lakes and rivers and can be submerged into depths far greater than a standard sub-pump cable.

Typical Uses for Armored Submersible Cable

Typically, the armored submersible cable is used for electric pumps or other electrical equipment that are at great depth. Additionally, there are often deepwater applications that may present more danger to the cables and equipment. Along with taking other subversive measures such as running your cable in a pipe, buried, or under a rock mattress, armoring your submersible cable is a major step many customers take to ensure their investment is protected.   As the video above states, TEST OUT METAL! 1X Technologies is the premier manufacturer of armored submersible cables for pumps and other applications which require underwater power cables.

Multi-Conductor Sub-Pump Cable Uses / Types / References

While 1X Technologies supplies you with all the standard sizes of sub-pump cable, we also have multi-conductor submersible pump cables in stock up to 60 conductors from 18 AWG through 10 AWG. In the larger sizes, we can produce your extra-large sub-ump wire up to 6000 KCMIL and up to an outside diameter of 6 inches.

In the past, we have produced submersible pump cables with up to 200 Conductors, but we have the capability to produce a multi-conductor submersible cable with thousands of conductors for your job. Just let us know what you need, we are happy to help and do it all the time!

Why Flat?

The simplicity of a flat 1X Technologies cable design, with its parallel conductor geometry, eliminates many of your most common sources of wiring error and malfunction in your festoon cable system.

A key to manufacturing flat submersible pump cable e is registration of your conductors, It is one-to-one with the terminating connector or board so that proper contact assignment is nearly automatic. Flat electrical pump cables also fold and bend readily, conforming to the mounting area on your machine. Flat flexible sub-pump Cables fasten easily with clamps, adhesive, or double-faced tape. Since the conductors are visible and in a fixed position within the dielectric coding, inspection and circuit tracing are simplified for you, making for an easy hook-up. And, because your conductor spacing is fixed and the geometry of the cable is constant, the electrical characteristics such as impedance, capacitance, inductance, time delay, crosstalk, and attenuation are consistent in your festooning system.

Why Round?

The reason round submersible pump cable is used is because of our ability to manufacture much larger AWG size wires, with more copper and aluminum and more flexible insulation. All of these materials help you to have better electrical performance compared to other constructions that do not allow larger cables to be produced. The biggest cables are always round, and we manufacture the largest cables in the world!
