1XTECH® THERMOSTAT WIRE – UNSHIELDED CL2/CMH – PLENUM / NON-PLENUM TSTAT WIRE & CABLE FOR HVAC, HEAT/HEATING, SPECIFICATIONS, PRICING/PRICE PER FT TO BUY

1X Technologies sells Thermostat Wire in all the standard sizes and conductor counts, colors, in solid copper (or stranded), in both plenum and non-plenum for your HVAC Heating applications. Our TSTAT cable is high quality and meets all required specifications including UL flame tests and it is made in the USA. In addition to the standard sizes and colors of the Thermostat heating wire, we also make products for you in unlimited color combinations in both jacket and conductor colors, unlimited Armor options, shielded, nonshielded, as well as equals to Belden Thermostat Wire. We use the Pantone color wheel to design the perfect color for your customers’ homes or offices.





My Quick Thermostat Wire Price ✅

Include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond with your TSTAT Wire sale pricing, so you can buy it today.





If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.











APPLICATIONS AND USES

  • Thermostat Wire is a class 2 power-limited circuit cable for use in thermostat control applications



TSTAT WIRE CONSTRUCTION

  • Solid copper conductors with 6 mils of HDPE insulation
  • Conductors are covered with an FR PVC jacket, Brown or CMP PLENUM jacket, White.
  • Ripcord



THERMOSTAT WIRE PRINT LEGEND EXAMPLE:

  • TYPE CL2 C{ETL}US MASTER-DESIGN xx AWG x/C 1XTECH II SUN RES — TYPE CMH FT1



TSTAT WIRE & CABLE SPECIFICATIONS:

  • 150 Voltage rating per NEC® Article 725
  • ETL listed to UL 13 and UL 444
  • Meets UL 1581 Vertical Tray Flame Test (FT-1)
  • Type CL2
  • C22.2 214 TYPE CMH



1XTECH® THERMOSTAT WIRE SPECS / CHART

Rated 150 Volt, Sunlight-Resistant 60°C 18 and 20 Gauge Copper Conductors

1XTECH Stock # Description AWG #COND  COND. COLOR O.D.   (mils)  WEIGHT  (lbs/M’)
TSTAT182 TSTAT 18/2C SOL CU N/S CM/CL2 PVC  18 2 Red, White  132 13.0
TSTAT183 TSTAT 18/3C SOL CU N/S CM/CL2 PVC  18 3 Red, White, Green  140 19.0
TSTAT184 TSTAT 18/4C SOL CU N/S CM/CL2 PVC  18 4 Red, White, Green, Blue  154 25.0
TSTAT185 TSTAT 18/5C SOL CU N/S CM/CL2 PVC  18 5 Red, White, Green, Blue, Yellow  170 30.0
TSTAT186 TSTAT 18/6C SOL CU N/S CM/CL2 PVC  18 6 Red, White, Green, Blue, Yellow, Brown  186 36.0
TSTAT187 TSTAT 18/7C SOL CU N/S CM/CL2 PVC  18 7 Red, White, Green, Blue, Yellow, Brown, Orange  186 41.0
TSTAT188 TSTAT 18/8C SOL CU N/S CM/CL2 PVC  18 8 Red, White, Green, Blue, Yellow, Brown, Orange, Black  202 47.0
TSTAT1810 TSTAT 18/10C SOL CU N/S CM/CL2 PVC  18 10 Red, White, Green, Blue, Yellow, Brown, Orange, Black, Pink,  Gray 238 58.0
TSTAT1812 TSTAT 18/12C SOL CU N/S CM/CL2 PVC  18 12 Red, White, Green, Blue, Yellow, Brown, Orange, Black, Pink,  Gray, Tan, Purple 245 69.0
TSTAT202 TSTAT 20/2C SOL CU N/S CM/CL2 PVC 20 2 Red, White  114 9.2
TSTAT203 TSTAT 20/3C SOL CU N/S CM/CL2 PVC 20 3 Red, White, Green  121 12.6
TSTAT204 TSTAT 20/4C SOL CU N/S CM/CL2 PVC 20 4 Red, White, Green, Blue  132 16.2
TSTAT205 TSTAT 20/5C SOL CU N/S CM/CL2 PVC 20 5 Red, White, Green, Blue, Yellow  147 20.1
TSTAT206 TSTAT 20/6C SOL CU N/S CM/CL2 PVC 20 6 Red, White, Green, Blue, Yellow, Brown  160 23.7
TSTAT207 TSTAT 20/7C SOL CU N/S CM/CL2 PVC 20 7 Red, White, Green, Blue, Yellow, Brown, Orange  160 27.0
TSTAT208 TSTAT 20/8C SOL CU N/S CM/CL2 PVC 20 8 Red, White, Green, Blue, Yellow, Brown, Orange, Black  142 26.1
TSTAT2010 TSTAT 20/10C SOL CU N/S CM/CL2 PVC 20 10 Red, White, Green, Blue, Yellow, Brown, Orange, Black, Pink,  Gray  202 38.0
TSTAT2012 TSTAT 20/12C SOL CU N/S CM/CL2 PVC 20 12 Red, White, Green, Blue, Yellow, Brown, Orange, Black, Pink,  Gray, Tan, Purple 209 44.3



1XTECH® Thermostat Wire & Cable Non-Plenum (Brown) Sizes

Thermostat Wire and cable Brown Non-Plenum

  • 20/2C Thermostat wire non-plenum Brown, 500ft Spool
  • 20/3C Thermostat wire non-plenum Brown, 500ft Spool
  • 20/4C Thermostat wire non-plenum Brown, 250ft Spool
  • 20/5C Thermostat wire non-plenum Brown, 500ft Spool
  • 20/6C Thermostat wire non-plenum Brown, 250ft Spool
  • 20/7C Thermostat wire non-plenum Brown, 250ft Spool
  • 20/8C Thermostat wire non-plenum Brown, 250ft Spool
  • 20/10C Thermostat wire non-plenum Brown, 250ft Spool
  • 20/12C Thermostat wire non-plenum Brown, 250ft Spool
  • 18/2C Thermostat wire non-plenum Brown, 500ft Spool
  • 18/3C Thermostat wire non-plenum Brown, 500ft Spool
  • 18/4C Thermostat wire non-plenum Brown, 250ft Spool
  • 18/5C Thermostat wire non-plenum Brown, 250ft Spool
  • 18/6C Thermostat wire non-plenum Brown, 250ft or 500ft Spool
  • 18/7C Thermostat wire non-plenum Brown, 250ft Spool
  • 18/8C Thermostat wire non-plenum Brown, 250ft Spool
  • 18/10C Thermostat wire non-plenum Brown, 250ft Spool
  • 18/12C Thermostat wire non-plenum Brown, 250ft Spool




1XTECH® Thermostat Wire & Cable Plenum CMP (White) Sizes

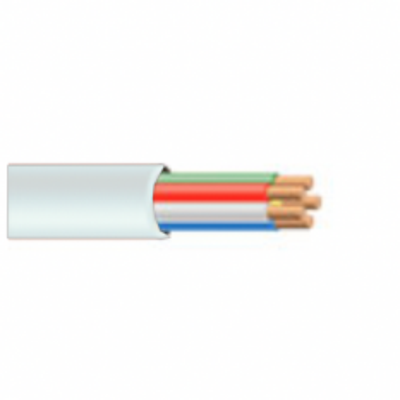

Plenum White Thermostat Wire and cable 1X Technologies

  • 20/2C Thermostat wire plenum rated (CMP) White, 500ft Spool
  • 20/3C Thermostat wire plenum rated (CMP) White, 500ft Spool
  • 20/4C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 20/5C Thermostat wire plenum rated (CMP) White, 500ft Spool
  • 20/6C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 20/7C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 20/8C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 20/10C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 20/12C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 18/2C Thermostat wire plenum rated (CMP) White, 500ft Spool
  • 18/3C Thermostat wire plenum rated (CMP) White, 500ft Spool
  • 18/4C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 18/5C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 18/6C Thermostat wire plenum rated (CMP) White, 250ft or 500ft Spool
  • 18/7C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 18/8C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 18/10C Thermostat wire plenum rated (CMP) White, 250ft Spool
  • 18/12C Thermostat wire plenum rated (CMP) White, 250ft Spool







Belden Thermostat Wire Equals / Equivalents

1X Technologies produces all Belden Thermocouple wire equivalents, cross-referenced directly to the Belden Catalog. Your Belden equal TSTAT Wire & Cable is available with multiple armoring and jacketing options, which makes it ideal for industries like petrochemical, pharmaceutical, mining, power generation, wastewater treatment, food processing, and transportation which require additional features in TSTAT. Connect your devices to TSTAT or controlling equipment with Belden Thermostat Wire and extension-grade TSTAT cable.


Features & Benefits of Belden Thermostat Cable

  • Adhere to Standards: Designed for American National Standards Institute (ANSI) and IEC compliance
  • Operate in Extreme Temperatures: Enhanced performance for operation even in high and low temperatures
  • Easy Identification: Color-coded insulation and jacket materials distinguish from other cables
  • Ensure Cable Performance: Generates measurable electrical energy with dissimilar conductors

Belden Thermostat and control cable, which may be used in commercial applications, are shielded. Tinned copper conductors, Datalene® insulation. Conductors twisted into pairs, overall Beldfoil® shield (100% coverage), tinned copper drain wire, overall Brown PVC jacket. Sequential footage marking every two feet. 1X Technologies produces and sells equivalents to the Below Belden thermostat cable part numbers.


Belden SKU 1XTECH SKU CONDUCTOR SIZE (AWG) NUMBER OF PAIRS
B-5340FT-1-1000 1XB5340EQ 18 1
B-5341PT-1-1000 1XB5341EQ 18 2
B-5540FT-1-1000 1XB5540EQ 22 1
B-5541PT-1-1000 1XB5541EQ 22 2
B-5660FT-1-1000 1XB5660EQ 24 1
