1C Copper 5kV 8kV MV-105 Power Cable

1XTECH® 1C Copper 5kV 133% / 8kV 100% MV-105 Medium Voltage Power Cable Specifications / size chart (NEC) / Ampacity / Ratings / Price, Cost per Foot

1X Technologies Cable Company produces quality 1C Copper 5kV / 8kV MV-105, made in the USA. Below you will use the size chart per the NEC to access ampacity, ratings, and overall cable specifications using engineering charts and diagrams. If you need additional help sizing your cable or require a price/cost per foot, please contact customer service at 1-888-651-9990 or fill in the secure contact form below and we will help you quickly.





Request My Price Quote ✅

Get your quick, hassle-free price quotation on 1C Copper 5kV / 8kV MV-105 Power Cable, right now. Please fill out the secure form below and be sure to include your quantity required, wire & cable description, and delivery location in your message, and your 1X Technologies representative will respond quickly. If you still have questions, call us at 1-888-651-9990. We are available to answer questions Monday through Friday, 9 am – 6 pm MST.

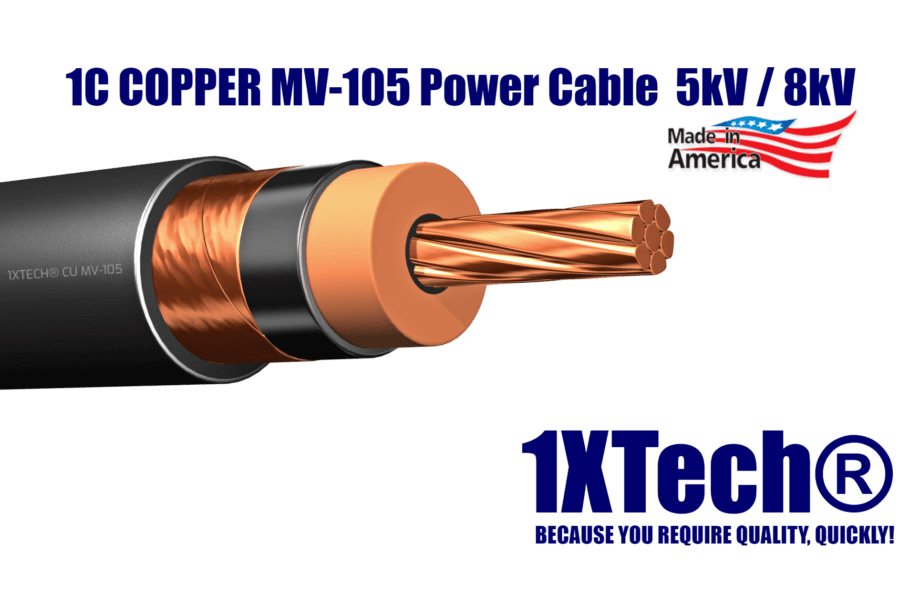

1XTECH® 1C Copper 5kV / 8kV MV-105 Construction:

  1. Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8. Tinned copper optional per ASTM B33
  2. Conductor Shield: Semi-conducting cross-linked copolymer
  3. Insulation:5kV 133% /8KV 100% Insulation Level 115 Mils Ethylene Propylene Rubber
  4. Insulation Shield: Strippable semi-conducting cross-linked copolymer
  5. Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
  6. Overall Jacket: Low Smoke Polyvinyl Chloride (LS-PVC)


Applications and Features:

1XTech’s 5kV 133% /8KV 100% cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial when installed with a grounding conductor in close proximity that conforms to NEC section 311.36 and 250.4(A)(5), aerially supported by a messenger and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature, not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated at -35°C for a cold bend. ST1 (low smoke) Rated for sizes 1/0 and larger. LS-PVC jacket is made with quality low smoke materials. Rated for 1000 lbs./FT maximum sidewall pressure. These cables feature sunlight and moisture resistance, exceptional corona resistance, resistance to most chemicals, oils, and acids, and are flame retardant.




Specifications:

  • ASTM B3 Standard Specification for Soft or Annealed Copper Wire
  • ASTM B8 Concentric-Lay-Stranded Copper Conductors
  • ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
  • ASTM B496 Compact Round Concentric-lay-standard copper
  • UL 1072 Medium-Voltage Power Cables
  • UL 1685 FT4-ST1 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
  • UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
  • CSA C22.2 No.230 Tray Cables – Rated TC-ER (1/0 AWG and Larger)
  • CSA C22.2 No. 2556 / UL 2556 Cable Test Methods
  • CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications – 5 to 46 KV
  • ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
  • ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
  • ICEA S-97-682 Standard for Shielded Utility Cable Rated for 5 – 46kV
  • IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger)
  • AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV
  • BUY AMERICAN ACT APPROVED:  YES, MADE IN THE USA




Weights and Measurements Chart| 1C Copper 5kV / 8kV MV-105

1XTech Stock Number

 Size Diameter Over Conductor Diameter Over Insulation Diameter Over Insulation Shield Jacket Thickness1 Approx. OD Approx. Weight Max Pull Tension Min Bending Radius Conduit Size*
  AWG/Kcmil inch inch inch mil inch lb/1000ft lb inch inch
1XT2G◊ 2 0.283 0.550 0.610 65 0.760 454 531 9.1 2.5
1XT1G◊ 1 0.322 0.589 0.649 65 0.799 522 670 9.6 2.5
1XT1/0◊ 1/0 0.362 0.629 0.689 65 0.839 609 845 10.1 2.5
1XT2/0◊ 2/0 0.405 0.672 0.732 65 0.882 714 1065 10.6 2.5
1XT3/0◊ 3/0 0.456 0.723 0.783 80 0.963 871 1342 11.6 3
1XT4/0◊ 4/0 0.512 0.779 0.839 80 1.019 1034 1693 12.2 3
1XT250◊ 250 0.558 0.834 0.894 80 1.074 1180 2000 12.9 3
1XT350◊ 350 0.661 0.937 0.997 80 1.177 1540 2800 14.1 3.5
1XT500◊ 500 0.789 1.065 1.125 80 1.305 2067 4000 15.7 4
1XT600◊ 600 0.866 1.151 1.211 80 1.391 2419 4800 16.7 4
1XT750◊ 750 0.968 1.253 1.313 80 1.493 2932 6000 17.9 5
1XT1000◊ 1000 1.117 1.402 1.462 80 1.642 3777 8000 19.7 5
1XT1500◊ 1500 1.370 1.770 1.830 110 2.070 5746 12000 25
1XT2000◊ 2000 1.582 1.953 2.013 110 2.153 7208 16000 26

All dimensions are nominal and subject to normal manufacturing tolerances

◊ Cable marked with this symbol is a standard stock item
* Conduit size based on 3 phase 40% fill-factor without ground 1 Comply with ICEA S-93-639 Appendix C for jacket thickness determination
*In addition to these standard stock sizes, 1X Technologies manufactures up to 6000 KCMIL on Medium Voltage Power Cable. Contact customer service for more information on alternate sizing.




Electrical & Engineering Data Specifications Chart | 1C Copper 5kV / 8kV MV-105


Cond. Size DC Resistance @ 25°C AC Resistance @ 90°C Capacitive Reactance @ 60Hz Inductive Reactance @ 60Hz Zero Sequence Impedance* Positive Sequence Impedance* Shield Short Circuit Current 6 Cycles Allowable Ampacity In-Duct 90/105°C† Allowable Ampacity In Air 90/105°C‡
AWG/Kcmil Ω/1000ft Ω/1000ft MΩ*1000ft Ω/1000ft Ω/1000ft Ω/1000ft Amp Amp Amp
2 0.162 0.203 0.036 0.044 0.568 + j0.512 0.203 + j0.044 2017 145/155 190/215
1 0.129 0.161 0.033 0.043 0.530 + j0.490 0.162 + j0.043 2144 170/180 225/250
1/0 0.102 0.128 0.030 0.041 0.498 + j0.468 0.128 + j0.041 2274 195/210 260/290
2/0 0.081 0.101 0.027 0.040 0.473 + j0.446 0.102 + j0.040 2414 220/235 300/330
3/0 0.064 0.081 0.025 0.039 0.452 + j0.422 0.081 + j0.039 2580 250/270 345/385
4/0 0.051 0.064 0.023 0.038 0.434 + j0.397 0.065 + j0.037 2762 290/310 400/445
250 0.043 0.054 0.022 0.037 0.423 + j0.375 0.055 + j0.037 2941 320/345 445/495
350 0.031 0.039 0.019 0.035 0.402 + j0.336 0.040 + j0.035 3276 385/415 550/615
500 0.022 0.028 0.016 0.033 0.381 + j0.296 0.029 + j0.033 3693 470/505 695/775
600 0.018 0.024 0.015 0.033 0.369 + j0.272 0.024 + j0.033 3972 505/544 765/855
750 0.014 0.020 0.014 0.032 0.355 + j0.247 0.020 + j0.032 4304 585/630 900/1000
1000 0.011 0.016 0.012 0.031 0.336 + j0.216 0.016 + j0.030 4789 670/720 1075/1200
1500 0.007 0.0110 0.019 0.031 0.282 + j0.145 0.011 + j0.020 8965 805/865 1325/1477
2000 0.005 0.010 0.010 0.029 0.282 + j0.145 0.011 + j0.020 9862 940/1010 1575/1755



Extra Large Sizes Available | 1C Copper 5kV / 8kV MV-105

Please keep in mind that 1X Technologies can manufacture a custom MV-105, medium voltage power cable style product up to 6000 KCMIL if your project requires it, and we can typically produce the cable in short runs under 3,000 Feet.  Each custom cable is unique so please check with your account manager for more details.

Extra 1C Copper 5kV / 8kV MV-105 Cable Sizes (MCM/KCMIL)

  • 600 MCM  / 600 KCMIL
  • 750 MCM  / 750 KCMIL
  • 800 MCM  / 800 KCMIL
  • 900 MCM  / 900 KCMIL
  • 1000 MCM  / 1000 KCMIL
  • 1250 MCM  / 1250 KCMIL
  • 1500 MCM  / 1500 KCMIL
  • 1750 MCM  / 1750 KCMIL
  • 2000 MCM  / 2000 KCMIL
  • 2250 MCM  / 2250 KCMIL
  • 2500 MCM  / 2500 KCMIL
  • 2750 MCM  / 2750 KCMIL
  • 3000 MCM  / 3000 KCMIL
  • 3250 MCM  / 3250 KCMIL
  • 3500 MCM  / 3500 KCMIL
  • 3750 MCM  / 3750 KCMIL
  • 4000 MCM  / 4000 KCMIL
  • 4250 MCM / 4250 KCMIL
  • 4500 MCM / 4500 KCMIL
  • 4750 MCM / 4750 KCMIL
  • 5000 MCM / 5000 KCMIL
  • 5250 MCM / 5250 KCMIL
  • 5500 MCM / 5500 KCMIL
  • 5750 MCM  / 5750 KCMIL
  • 6000 MCM  / 6000 KCMIL
